Single Channel Tangle-Free Insertion and Return Loss Test Station，ILRL-6001MM-1CH

Single Channel Tangle-Free Insertion and Return Loss Test Station，ILRL-6001MM-1CH

Ⅰ、Product Description：

Single-channel winding-free insertion and return loss test station is a precision optical testing instrument developed by our company by combining our many years of experience in the production and testing of fiber optic passive components and optical communication testing instruments, and fully drawing on the advantages of domestic and foreign instruments and the needs of domestic customers. It is widely used in insertion loss and return loss testing of optical fiber and cable, optical passive components and optical fiber communication systems, and is a basic testing instrument used by the majority of manufacturers, scientific research institutes and operators for production testing, research and development, and engineering construction and maintenance.

Ⅱ、Product Feature

1，High Testing Accuracy

Through the built-in highly stable laser, state-of-the-art microelectronics technology and optical detection equipment, combined with software technology, the instrument’s output power is stable, detection speed is fast, and the test range is wide.

2，Multiple Working Modes

The test instrument integrates return loss testing and insertion loss testing.

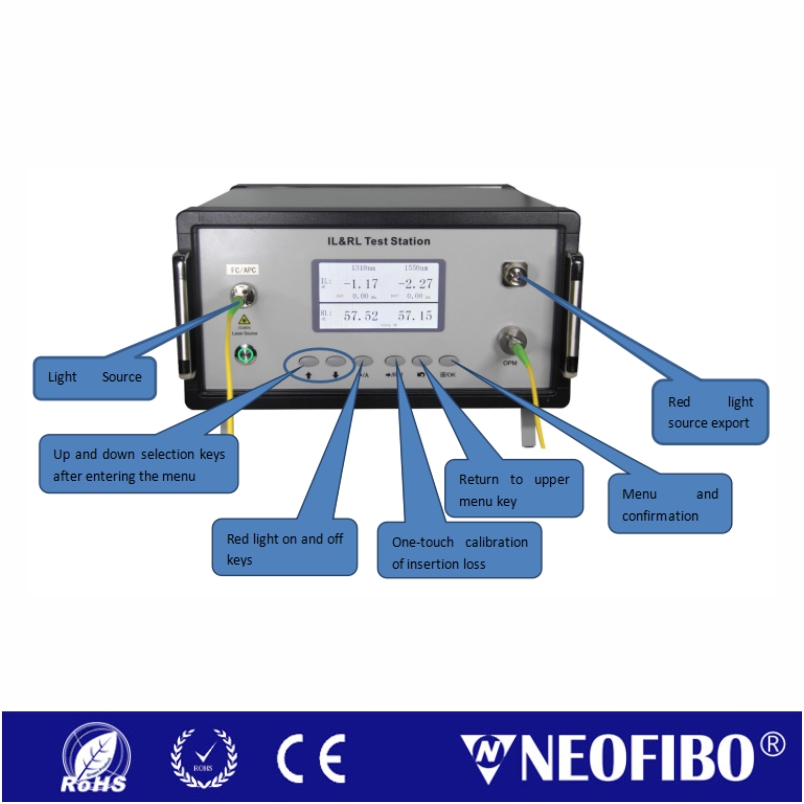

3，Simple and Easy to Operate

Simultaneous measurement of return/insertion loss without key switching. Return loss/insertion loss test values are displayed on one instrument at the same time, so that the test results can be seen at a glance. The program will automatically save the corresponding test data.

4，Ergonomic design

The instrument is housed in a high quality metal case to ensure that the instrument’s performance is protected from electrical interference that may be present in production environments. Durable keys with perfect comfort in the hand.。

5，Compact light source/optical power meter interface for easy cleaning and replacement

The light source adopts movable interface, which can be easily dismantled for cleaning and secondary processing of the optical connector, and the optical power meter adopts 2.5mm/1.25mm universal interface, with the inner core and fixing ring separated, so that it is easy to replace the inner core for wear and tear in the future, meanwhile, the inner core is made of special material, which makes the test value more accurate. (Note: When disassembling, just rotate the light source interface and unplug the interface)

Ⅲ、Specification

Multi–mode：IEC-61280‐4‐1

Ⅳ、Standard Configuration
