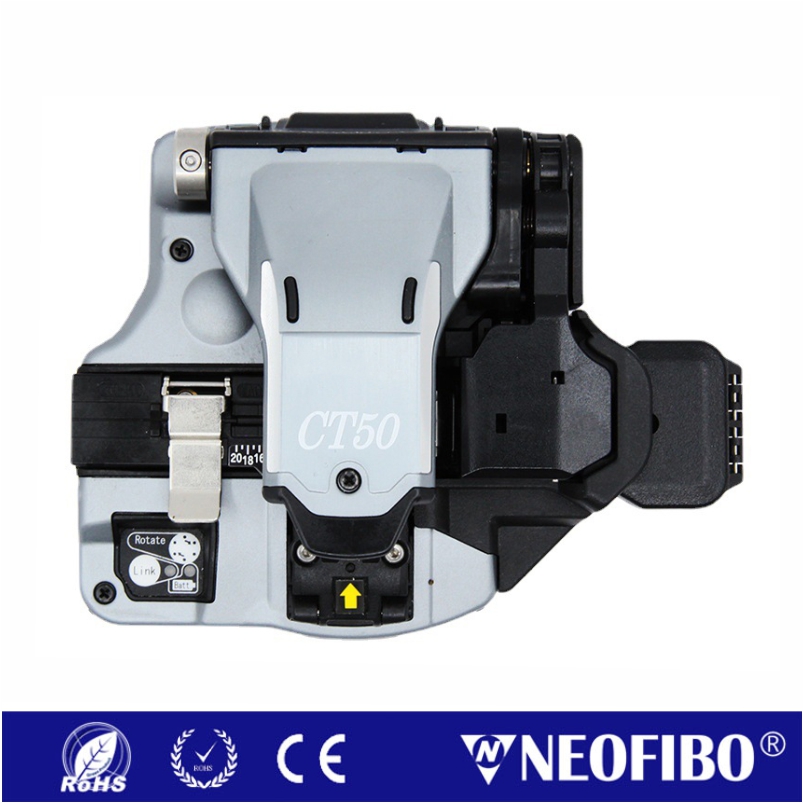

Precision Optical Fiber Cleaver，CT-50
Precision Optical Fiber Cleaver，CT-50
Product Description:
CT-50 precision optical fiber cleaver is the latest model of fiber cleaver, compared with the old model of cutter knife, CT50 has a stronger resistance to drop impact, and support the operator to replace the cutting blade by themselves, for the customer to significantly reduce the processing waiting time and maintenance costs. CT50 can be based on the quality of the fiber cut observed by fusion splicer to automatically adjust the position of the cutter knife blade, once the fusion splicer that the quality of the cut is not good, the The CT50 automatically adjusts the position of the cutter blade based on the quality of the fiber cut observed by the splicer. In addition, CT50 can complete the fiber cutting and waste fiber collection in one step. CT-50 cutting angle is excellent, end-face flat, easy to operate, cost-effective, and comes with fiber optic residue collector, suitable for fiber optic communications engineering, repair CATV engineering and maintenance of fiber optic cable manufacturers.
Key Feature：
- Automatic Blade Rotation Function: Through the wireless connection with the fusion splicer, the fusion splicer will judge the advantages and disadvantages of the cutting angle and control the cutting knife to rotate the blade surface automatically;
- Smarter blade life management: the fusion splicer can display the remaining blade life and inform the user when the blade height needs to be adjusted.
- Stronger drop resistance: specially designed to prevent the effects of dropping, it can withstand drops at all angles as well as in all directions;
- Simpler one-step operation: the cutting operation steps are simplified, no need to push in the slider, one press operation to complete the cutting and waste fiber collection;
- Larger operating space:the fiber in and out of the space increased, not easy to hurt the fiber, better cutting effect;
- Maintenance and replacement of consumables without tools (replacement of the knife face):the operation of replacing the knife face is extremely simple, only need to toggle the dial on the back;
- Easy operation and longer stripped fibers: the cover of the CT50 can be opened up to 100 degrees, making it easier to operate and compatible with longer stripped fibers than older models.
Specification：
| Applicable Fiber | Fiber | |
| Number of fiber cores | 1 to 12 cores | |
| Cladding Diameter | 125um | |
| Fiber Placement | Fiber Fixture | Fiber Tray：AD-50 |
| Cladding Diameter | 0.25 to 0.9mm | 0.16 to 0.9mm
2 to 3mm Leather or pigtail fiber |
| Cutting Length | 10mm
(from the edge of FH：13mm) |
5 to 20mm (coating dia. = 0.25)
10 to 20mm (coating dia. > 0.25) |
| Cutting Angle | 0.5 degrees under standard conditions | |
| Blade life | 60,000 cycles (1,250 roots x 16 positions x 3 heights) | |
| Blade Position | 16 positions and 3 heights | |
| Wireless Connection Environment | Bluetooth 4.1 LE | |
| Power Supply | AAA (LR03) dry battery: 2pc | |
| Size | 120(W) x 95(D) x 45(H)mm | |
| Weight | 320g | |
| Operating Environment | 0 to 95% RH and -10 to 50℃ (non-dew) | |
| Storage Environment | 0 to 95% RH and -40 to 80℃ (non-dew) | |
| Environmental Adaptability | Impact resistance: 76cm (30inch) drop in all directions. | |
| Dust: Exposure to dust
(equivalent to 0.1 to 500μm diameter aluminum silicate powder) |
||
| Rain protection: 10 minutes under 10mm/hr of precipitation | ||
Standard Configurations：
| Product Name | Model | Qty |
| Precision Optical Fiber Cleaver | CT50 | 1pc |
| Fiber Tray | AD-50 | 1pc |
| Carrying Case | CC-37 | 1pc |
| Screwdriver | HEX-01 | 1pc |
| Operation Manual | M-CT50-E | 1pc |
