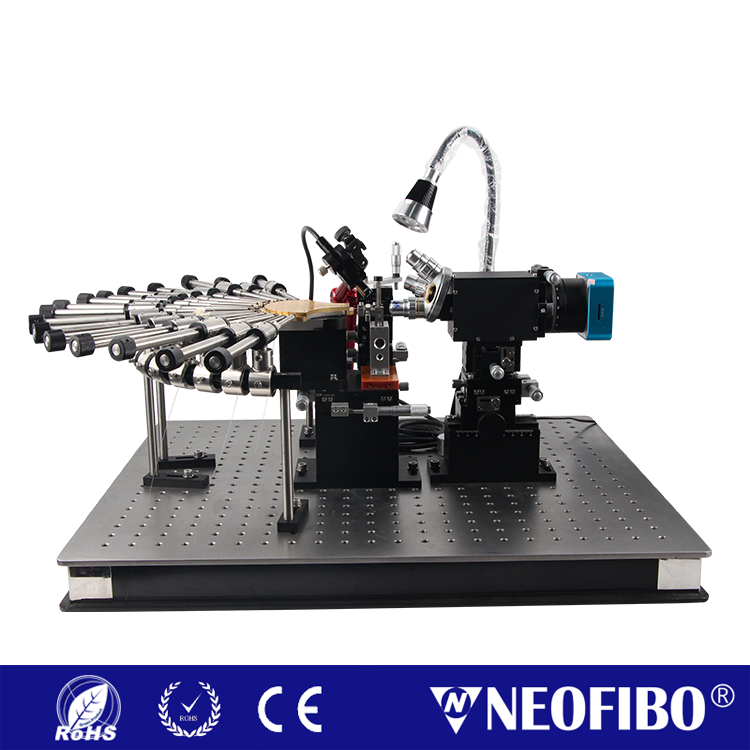

PMF-421P-FA16 Polarization Maintaining Fiber Alignment System
PMF-421P-FA16 Polarization Maintaining Fiber Alignment System
Model：PMF-421P-FA16
Place of Origin: Shenzhen, China
Product Description：
FA polarization maintaining fiber alignment system is designed by Shenzhen Neofibo Technology Limited and is specifically designed for FA alignment of optical fibres in a complete row. Customised horizontal and vertical grid lines ensure that the angular deviation after alignment is much less than ±3 degrees.
Main Features:
* Specially designed for FA fibre alignment, with high efficiency against axes.
* Heat-cured FA fiber alignment.
* HD camera imaging 100-800x magnification for effective control of alignment angles less than ±3 degrees.
* Multiple horizontal and vertical raster lines to ensure fast and slow axis consistency.
* precise control of the three-axis adjustment frame, with a fine adjustment accuracy of ±0.01mm.
* Internal and external light sources to ensure clear imaging of the end face of the deflection-preserving fibres.
* 600x500mm optical stage for easy system expansion.
* direct heating and curing of the fiber in the fiber insert or capillary tube after the catenary alignment is completed
* 0~360 degrees adjustment angle of the spindle.
Technical Parameters.：
| Model | PMF-421P-FA16 |
| Brand | Neoscope |
| Function | FA polarization maintaining fiber alignment system, in-line curing, end face inspection |
| Applicable inserts | Standard: FA inserts
Options: FC, SC, LC, MT, mini MT inserts, glass capillary positioning pieces |
| Curing method | Heat curing or UV curing |
| Heating temperature | 85~150℃ adjustable |
| Heating time | 4~6 minutes |
| Heating power | 80~100W, 220V, 50Hz |
| Swivel angle | 0~360°adjustable |
| Number of counter-rotators | 1pc |
| Counter-rotators | Four axis adjustable |
| FA insert holder | One axis adjustable |
| Imaging system | Three axis adjustable |
| Illumination source | Built-in and external light source |
