Multi-core Polarization Maintaining Fiber Alignment System；PMF-421P-10CH
Multi-core Polarization Maintaining Fiber Alignment System；PMF-421P-10CH
Product description:

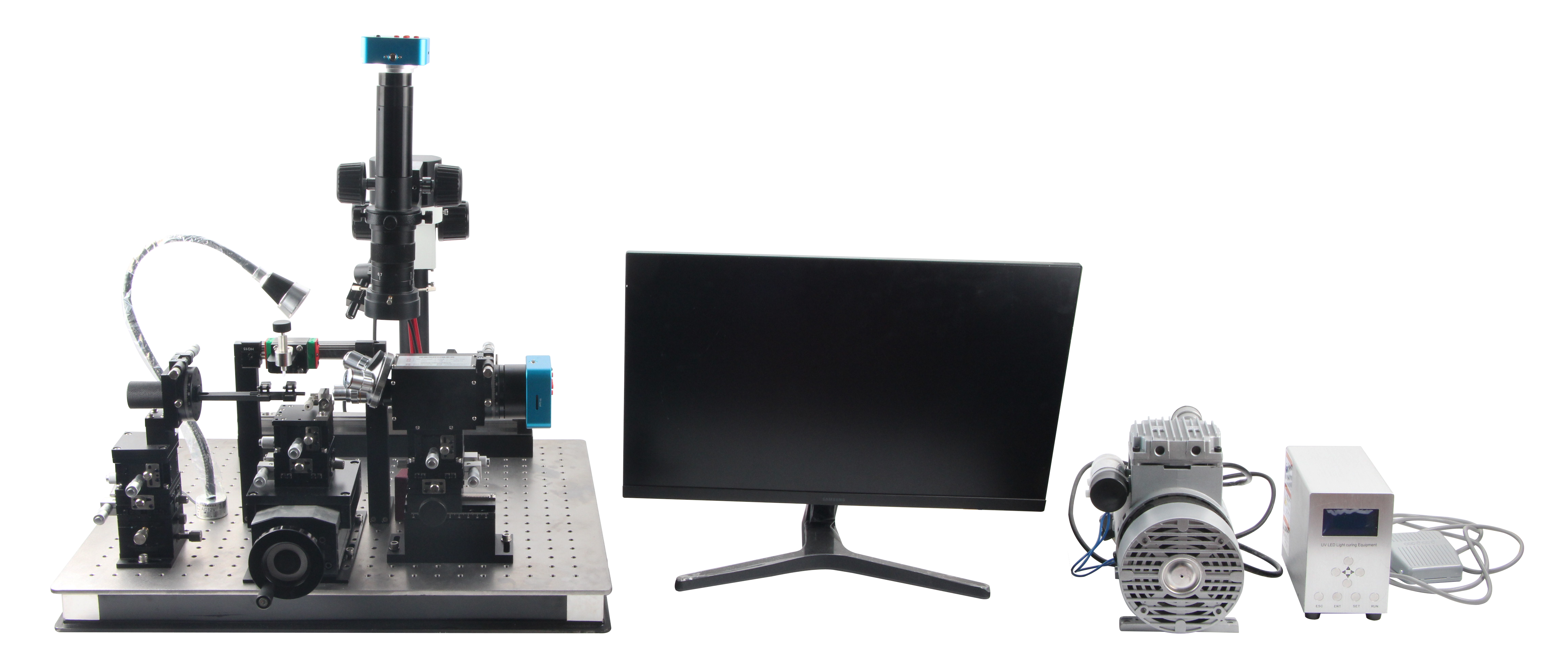

PMF-421P-10CH, multi-core polarization maintaining fiber alignment system, was designed by Shenzhen Neofibo Technology Limited. and is specially used for 80μm multi-core polarization maintaining fiber alignment. After completing the alignment, perform the dispensing or patching operation, and finally heat pre-curing. High-definition camera and internal/external light source ensure clear catadioptric imaging. Customized horizontal and vertical grid lines ensure that the angular deviation after alignment is far less than ±3 degrees; 400X/200X/100X/80X adjustable lenses for a wide field of view; 600x500mm optical platform for easy system expansion.
Key Features:

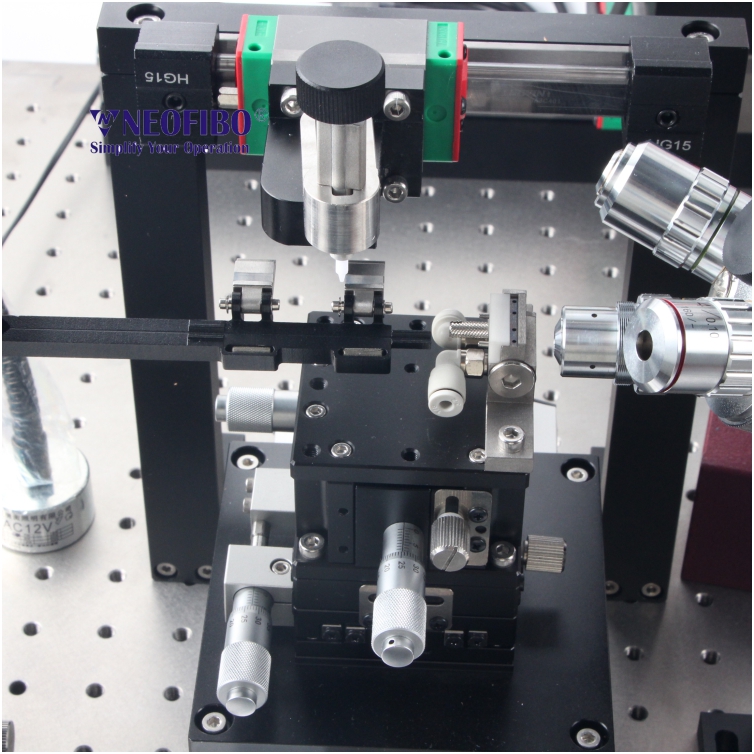

- Dedicated to the alignment of 80μm multi-core polarization maintaining optical fiber;
- UV lamp fixed sliding table;
- The imaging of high-definition camera is magnified by 400 times, and the degree offset is controlled within 3 degrees after debugging according to the reference line;
- Multiple horizontal and vertical grid lines to ensure the consistency of fast and slow axes;
- Precise control of three-axis adjusting frame, with fine adjustment accuracy of ±0.01mm;
- The external light source ensures that the end face of the polarization maintaining fiber is clearly imaged;
- 600x500mm optical platform is convenient for system expansion;
- The adjustment angle of the rotating alignment is 0~360 degrees;
- Maximumnumber of alignment cores: 10 cores;

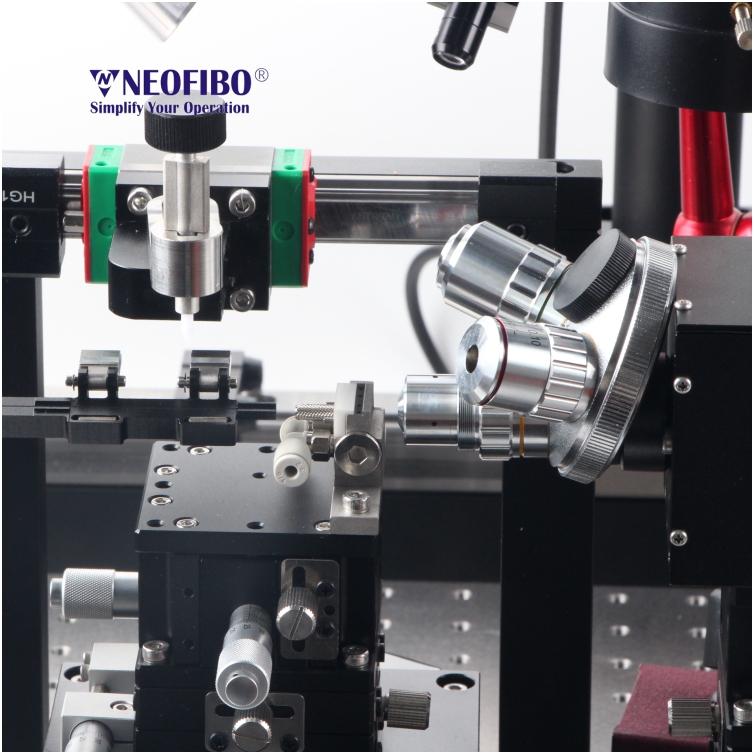

- 400X/200X/100X/80X adjustable lens with wide field of view.
Technical Parameters:
| Model | PMF-421P-10CH |
| Brand | Neoscope |
| Function | Alignment, curing and end-face inspection of FA polarization-maintaining fiber |
| Suitable ferrule | Standard: FA ferrule
Optional: FC, SC, LC, MT, mini MT ferrule, glass capillary positioning parts. |
| Curing mode | UV Curing |
| Axis rotation angle | 0~360° adjustable |
| Number of axis rotators | 1 pcs |
| Axis rotators | Four-axis adjustable |
| FACore insert fixing table | Four-axis adjustable |
| Imaging system | Four-axis adjustable |
| Light source | Internal light source and external light source |

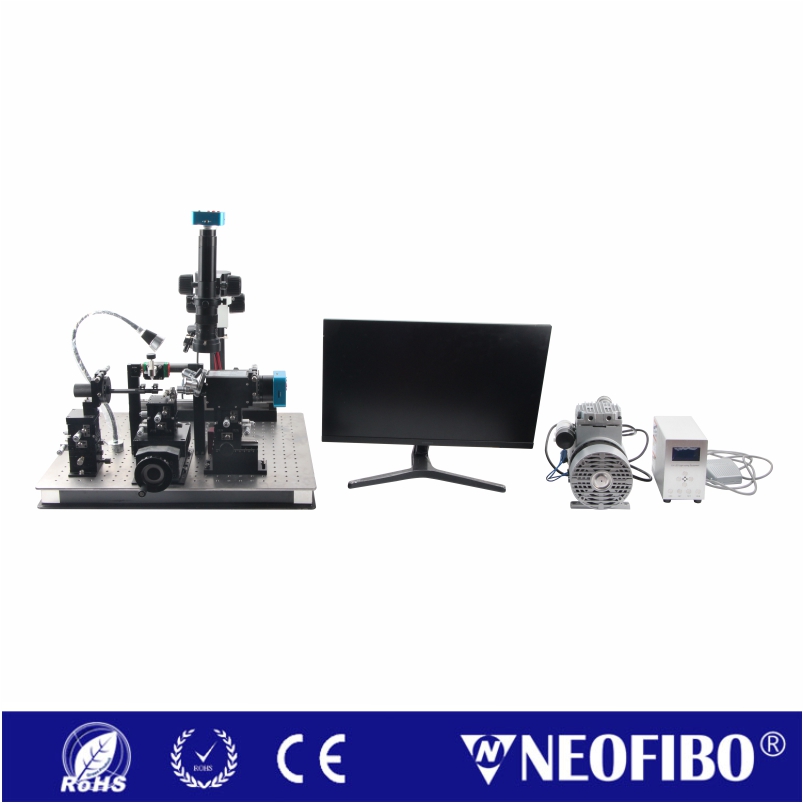

Standard Configuration:
| No. | Description | QTY |
| 1 | Focusing system of CCD camera | 1 set |
| 2 | Optical fiber rotator | 1 set |
| 3 | LED external light source | 1 set |
| 4 | 24-inch Samsung LCD monitor | 1 set |
| 5 | 12V 5A power adapter | 1 pcs |
| 6 | Ac power cord | 1 pcs |
| 7 | Built-in light source control switch wire | 1 pcs |
