Intelligent Polarization Maintaining Fiber Alignment System，PMF-425P-AT
Intelligent Polarization Maintaining Fiber Alignment System，PMF-425P-AT
Product Description:

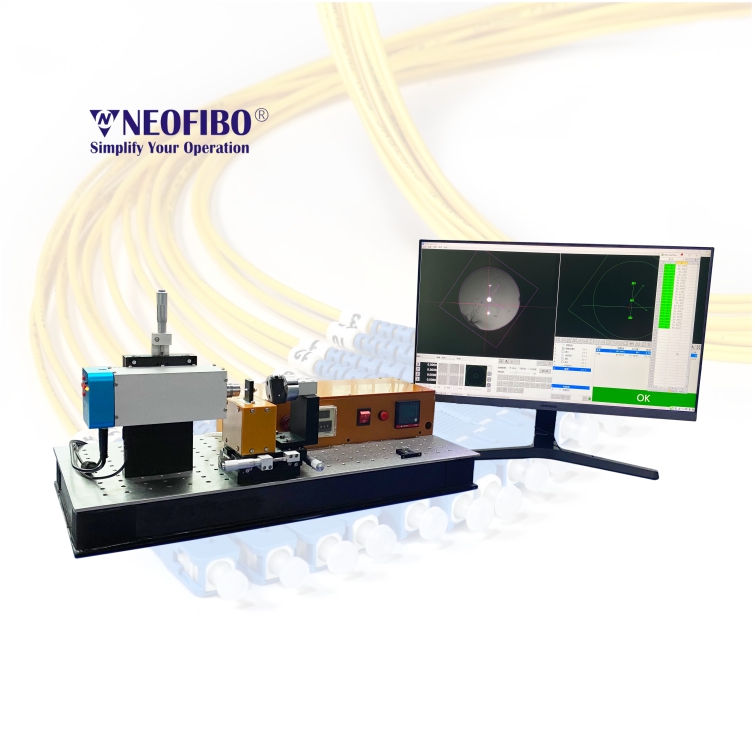

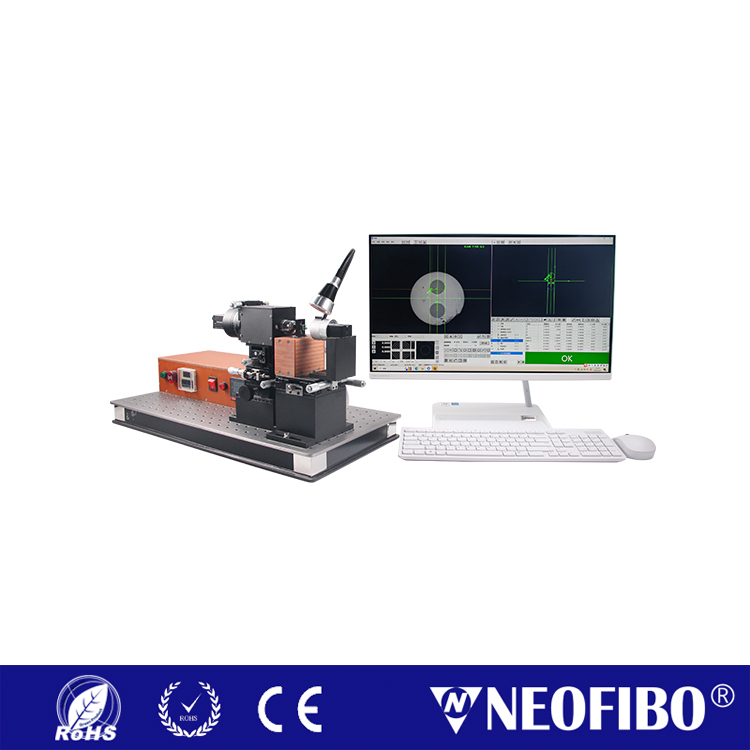

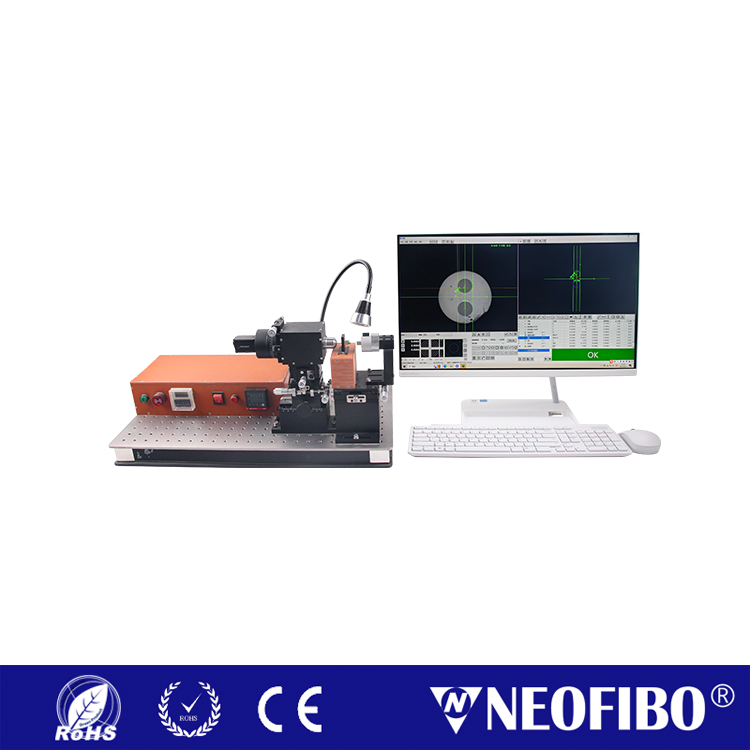

Intelligent polarization maintaining fiber alignment system designed by Shenzhen Neofibo Technology Limited, is suitable for single and multi-core PM fiber alignment, accurately measuring the angle of PM fiber alignment, with the option of triggered measurement mode and continuous measurement mode; high-definition camera and internal and external light sources to ensure clear imaging of the optical fiber end-face, to ensure the accurate alignment of the catenary, and efficiently carry out the operation of dispensing or replenishment, and finally complete the heating and pre-curing. Adjustable angle of 0-360°, automatic production and storage of measurement data report.
Key Features:
- Can be used for single multi-core polarization preserving fiber and FA fiber array alignment, accurate measurement of polarization preserving fiber alignment angle, efficient alignment;
- Single magnification or multi-magnification objective lens can be selected, trigger measurement mode and continuous measurement mode can be selected;
- High-definition CCD camera, optical magnification 100-800 times adjustable;
- On-line detection of the deviation of axial squareness, measurement and recognition accuracy of 0.001 degree;
- Internal and external light sources to ensure clear imaging of the end face of the bias-preserving fiber;
- 600x500mm optical platform is convenient for system expansion, online heating curing or UV curing function is optional;
- Adjustment angle of rotary axis is 0~360 degrees;
- Automatically determine【OK】or【NG】and generate reports and store measurement data.
Technical Parameters
| Model Number | PMF-425P-AT |
| Function | Intelligent single-multi-core bias-preserving fiber alignment, in-line curing, end-face inspection |
| Applicable inserts | Standard: single core insert
Options: FC, SC, LC, MT, mini MT inserts, glass capillary locators |
| Curing method | Heat curing or UV curing |
| Heating temperature | 85~150°C adjustable |
| Heating time | 4~6 minutes |
| Heating power | 80~100W, 220V, 50Hz |
| Countershaft rotation angle | 0~360°adjustable |
| Number of countershaft rotators | 1pc |
| Countershaft rotator | Four-axis adjustable |
| FA cartridge holder | One axis adjustable |
| Imaging system | Three-axis adjustable |
| Illumination light source | Built-in light source and external light source |
| Equipment Configuration | Optional Lenovo or Huawei desktop computer environments |
Standard Configurations：
| No. | Description | Quantity |
| 1 | CCD camera focusing system | 1 set |
| 2 | Heating timing curing system | 1 set |
| 3 | 250/900um fiber optic rotator | 1 set |
| 4 | LED external light source | 1 set |
| 5 | 24 inch Samsung LCD monitor | 1 set |
| 6 | 12V 5A Power Adapter | 1pc |
| 7 | AC Power Cord | 1pc |
| 8 | Built-in light source control switch cable | 1pc |
