Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT

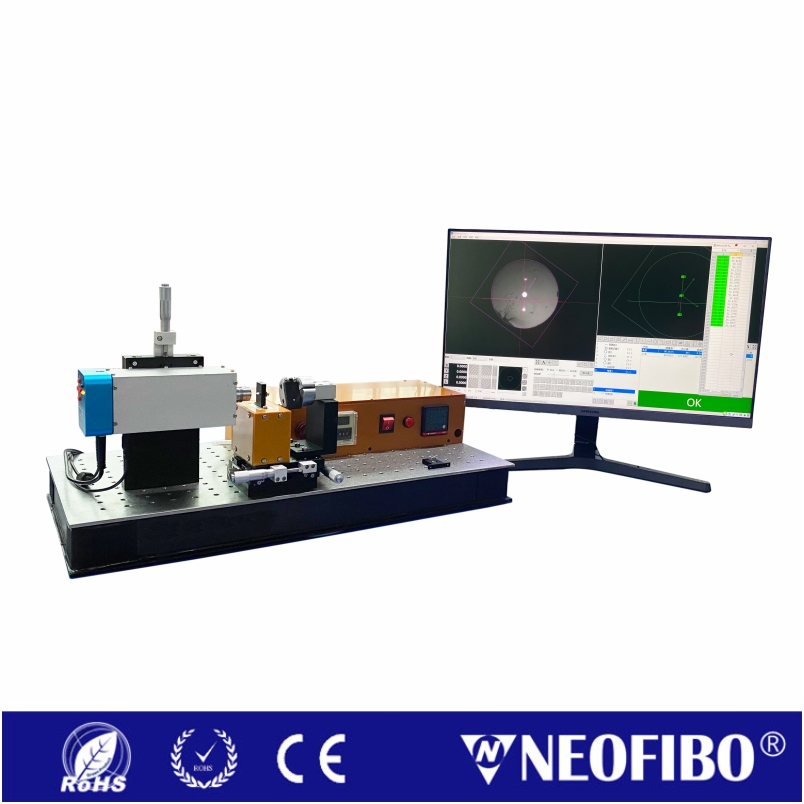

Intelligent polarization maintaining fiber alignment system designed by Shenzhen Neofibo Technology Limited, is suitable for single and multi-core PM fiber alignment, accurately measuring the angle of PM fiber alignment, with the option of triggered measurement mode and continuous measurement mode; high-definition camera and internal and external light sources to ensure clear imaging of the optical fiber end-face, to ensure the accurate alignment of the catenary, and efficiently carry out the operation of dispensing or replenishment, and finally complete the heating and pre-curing. Adjustable angle of 0-360°, automatic production and storage of measurement data report.

Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT

Product Description:

Intelligent polarization maintaining fiber alignment system designed by Shenzhen Neofibo Technology Limited, is suitable for single and multi-core PM fiber alignment, accurately measuring the angle of PM fiber alignment, with the option of triggered measurement mode and continuous measurement mode; high-definition camera and internal and external light sources to ensure clear imaging of the optical fiber end-face, to ensure the accurate alignment of the catenary, and efficiently carry out the operation of dispensing or replenishment, and finally complete the heating and pre-curing. Adjustable angle of 0-360°, automatic production and storage of measurement data report.

Key Features:

  • Can be used for single multi-core polarization preserving fiber and FA fiber array alignment, accurate measurement of polarization preserving fiber alignment angle, efficient alignment;
  • Single magnification or multi-magnification objective lens can be selected, trigger measurement mode and continuous measurement mode can be selected;
  • High-definition CCD camera, optical magnification 100-800 times adjustable;
  • On-line detection of the deviation of axial squareness, measurement and recognition accuracy of 0.001 degree;
  • Internal and external light sources to ensure clear imaging of the end face of the bias-preserving fiber;
  • 600x500mm optical platform is convenient for system expansion, online heating curing or UV curing function is optional;
  • Adjustment angle of rotary axis is 0~360 degrees;
  • Automatically determine【OK】or【NG】and generate reports and store measurement data.

Technical Parameters

Model Number PMF-425P-AT
Function Intelligent single-multi-core bias-preserving fiber alignment, in-line curing, end-face inspection
Applicable inserts Standard: single core insert

Options: FC, SC, LC, MT, mini MT inserts, glass capillary locators

Curing method Heat curing or UV curing
Heating temperature 85~150°C adjustable
Heating time 4~6 minutes
Heating power 80~100W, 220V, 50Hz
Countershaft rotation angle 0~360°adjustable
Number of countershaft rotators 1pc
Countershaft rotator Four-axis adjustable
FA cartridge holder One axis adjustable
Imaging system Three-axis adjustable
Illumination light source Built-in light source and external light source
Equipment Configuration Optional Lenovo or Huawei desktop computer environments

 Standard Configurations

No. Description Quantity
1 CCD camera focusing system 1 set
2 Heating timing curing system 1 set
3 250/900um fiber optic rotator 1 set
4 LED external light source 1 set
5 24 inch Samsung LCD monitor 1 set
6 12V 5A Power Adapter 1pc
7 AC Power Cord 1pc
8 Built-in light source control switch cable 1pc
  • Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT
  • Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT
  • Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT
  • Intelligent Polarization Maintaining Fiber Alignment System,PMF-425P-AT
