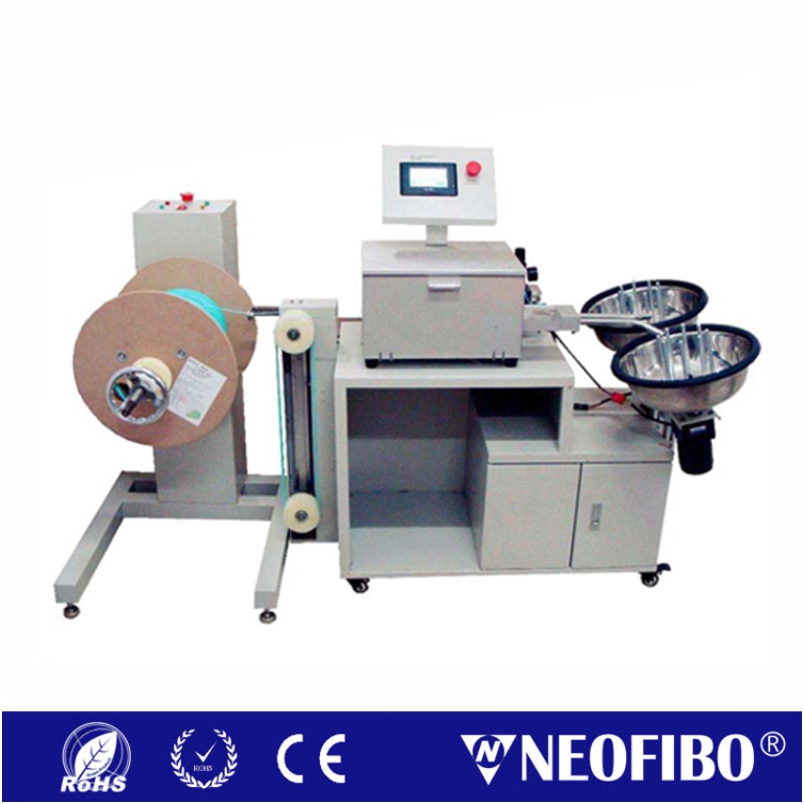

fully automatic cutting and striping cable machine AOFC-2001(Align)
fully automatic cutting and striping cable machine AOFC-2001(Align)
Products Description:
AOFC-2001 Automatic Fiber Cable Cutting Machine is applied for producing fiber optic patchcord, and it is a professional equipment with measuring length / cutting and winding functions. It could cut different indoor optical fibers into required length and wind cable into circularity.
This machine has the advantages of accurate length measurement, integration of cutting and winding, automatic operation, etc. The default Chinese and English automatic switching interface and customizable menu language can meet the language needs of different countries; the operation interface is simple and clear, and can be set to different lengths of the lower cable and the lower cable speed, which greatly improves the production efficiency.
Main Function:
*Aligning cable into perfect cable roll.
*Measuring Cable coil length.
*Cutting the appointed cable coil length.
*Double bowl to collect the cut cable coil.
*Professional cable receviing machine to wind and align cable coiling.
Key Features:
*Cable Cutting length tolerance is limited in 0.3%.
*Cable receiving machine could divide cable drum into small cable ring and shorter cable drums.
*Customize cable length on control system.
*Friendly touch screen interface, compact window.
*Customized language: Chinese / English / Korea or other.
Specification
|
Description
|
Capacity
|
|
Operation System
|
Chinese & English, Touch Screen
|
|
Cutting Length
|
1 to 2000 mtrs
|
|
Cable Diameter
|
Φ1.00mm to Φ9.00mm(max)
|
|
Cable Type
|
Jacket fiber, Ribbon Fiber, UTP, CAT6
|
|
Running Speed (m/s)
|
0.5 – 1.6 meters per second
|
|
Length Accuracy
|
no more than 3%
|
|
Power Consumption
|
2200Watt, 220V AC, 50/60Hz
|
|
Pressure Source
|
0.4 to 0.6Mpa
|
|
Load Weight
|
CSM: 75 kgs, CRM:45 kgs
|
|
Cable Drum OD
|
Φ500 mm (max)
|
|
Cable Drum ID
|
50 ~ 80 mm
|
|
Cable Collection Bowl Size
|
Φ180*110 mm
|
|
Assembled Machine Size
|
300cm * 73cm * 125cm
|
|
Net & Gross Weight
|
285 kgs / 330 kgs
|
