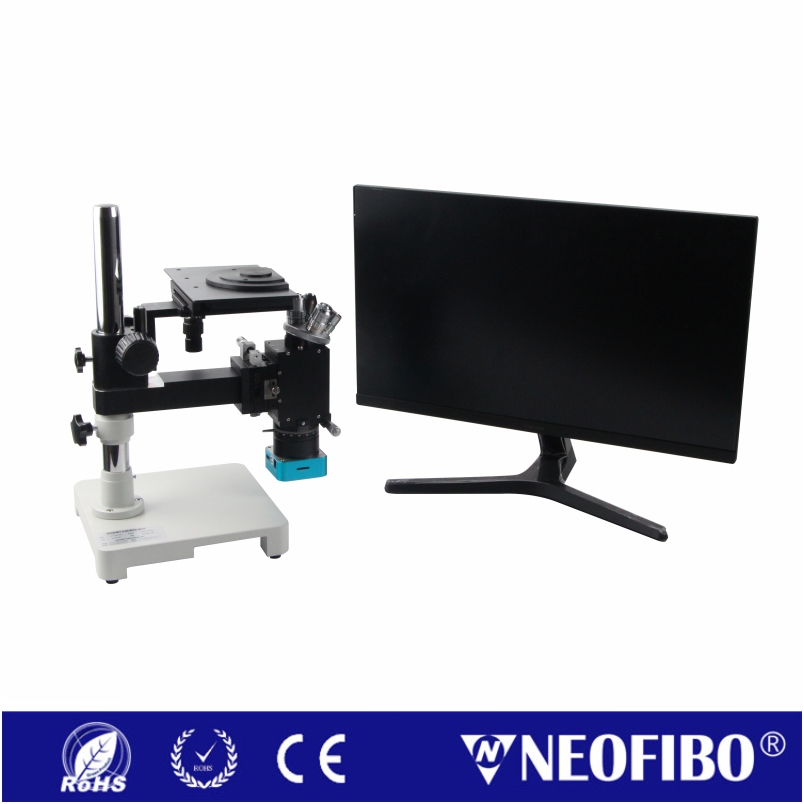

Four Adjustable Multi-function Fiber Optic Inspection Scope, FK4-4215P
Four Adjustable Multi-function Fiber Optic Inspection Scope, FK4-4215P
Product Description:
Four Adjustable Multi-function Fiber Optic Inspection Scope for fiber optic end-face defect analysis, using different magnification objective lenses to view micron level defects. This machine is suitable for different diameters and sizes of single-core multi-core patch cord connectors, ferrules, single-core fibers and fiber bundles. Four objective lenses with different magnifications can be combined to provide a wide inspection field of view. It provides effective inspection solutions for fiber optic products in fiber optic communication industry, medical fiber optic and industrial laser industry.
Key Features:
- 4different magnification objective lens magnification, wide field of view;
- 400x / 200x / 100x / 50x (80x),any four magnification combinations;
- Clear view of fiber and ferrule endface defects;
- Is commonly used for SC FC ST LC single core fiber connectors;
- Is also suitable for MPO, FA arrays and other multi-core fiber optic products;
- For easy inspection of large core diameter fiber beam and image beam endface;
- Comes standard with an extra-large 10-inch high-definition LCD monitor;
- Provides special interface, special magnification customization services.
Technical parameters:：
| Model | FK4-4215P |
| Function | Inspection of fiber endface defects |
| Magnification | 400x / 200x / 100x / 50x (80x), three or four magnification options available |
| Magnification Principle | CCD camera magnification and optical magnification |

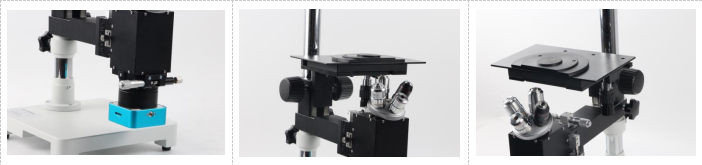

| Objective Lens Replacement | Hand dial switching |
| Standard interface | 2.50 & 1.25mm Universal Interface |
| Single-core optional interface | SC / FC / LC / ST UPC and APC connector; MT cartridge interface |
| Multi-core option | MPO connector UPC and APC interface; MT ferrule UPC and APC interface; FA fiber array interface |
| Customized interface | Large diameter fiber or fiber bundle interfaces, metal ferrule interfaces, other interfaces |
| Display Size | 10-inch LCD |
| Display Resolution | 1024*768 ppi |
| Power Supply | 1 10~220V AC 50Hz |
| Total Power | 35W |
| Package Size | 350*350*120mm, 300*240*200mm |
| Gross Weight | 10 kg |
Model List:：
| Model | Product Description |
| FK4-4215P | 400x / 200x / 100x / 50x Four Adjustable Multi-function Fiber Optic Inspection Scope |
| 400x / 200x / 100x / Four Adjustable Multi-function Fiber Optic Inspection Scope | |
| 400x / 200x / 80x / 50x Four Adjustable Multi-function Fiber Optic Inspection Scope | |
| 400x / 100x / 80x / 50x Four Adjustable Multi-function Fiber Optic Inspection Scope | |
| 200x / 100x / 80x / 50x Four Adjustable Multi-function Fiber Optic Inspection Scope |
Shenzhen Neofibo Technology Limited, founded in 2008 and based in Shenzhen, China, is committed to becoming a professional supplier of fiber optic polishing solutions. Our goal is to make our customers’ fiber connectivity more reliable.
Over the past 17 years, we’ve gathered a team of seasoned fiber optic professionals. Their expertise spans connector polishing and assembly, outside plant installation, transmission systems, datacom, CATV, and testing. Whether you’re a fiber optic scientist working on multi – gigabit, DWDM, or EDFA applications; a maintenance engineer for optical connecting systems; an outside plant contractor handling splicing and testing; a datacom manager dealing with multimode – to – single mode conversion; or an optical fiber component manufacturer in need of high – quality pigtails, consumables, and tools, Neofibo can provide you with proven solutions, products, and services.
Neofibo focuses on the field of fiber optic polishing solutions. We specialize in manufacturing fiber optic polishing machines, designing polishing fixtures for various optical fiber connectors, and offering complete polishing processes and materials for all types of fiber optic connectors.
We can also supply the full range of production equipment for fiber optic patch cords, including fiber optic polishing tools, end – face inspection microscopes, functional inspection and detection devices, raw materials like fiber optic cables and connectors, processing tools, and cleaning consumables.
Beyond products, Neofibo provides technical services and R & D support. We aspire to be your long – term, trusted partner.
