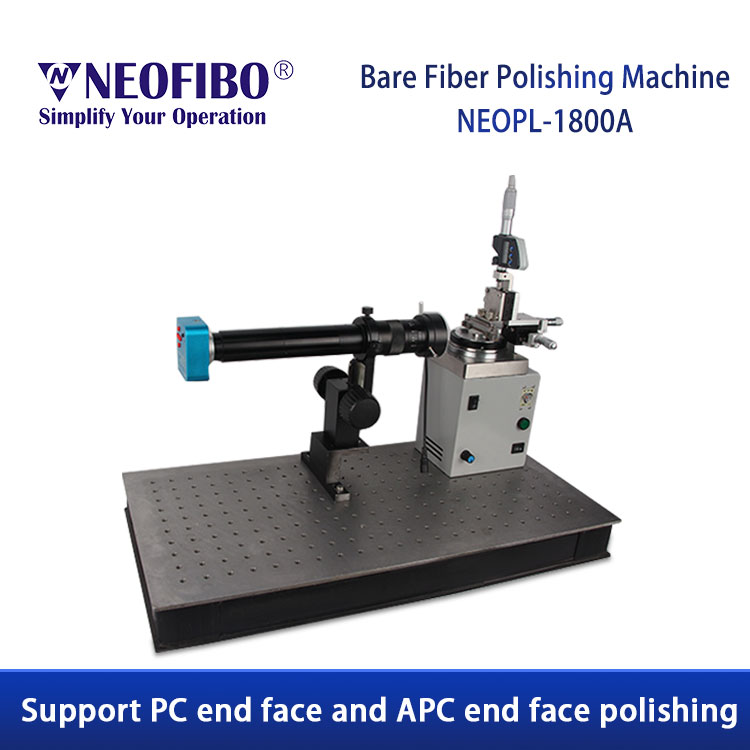

PC/APC Bare Fiber Polishing Machine, NEOPL-1800A

NEOPL-1800 Polishing Machine is specially designed for bare optical fiber polishing, to polish the fiber into PC end face, APC end face and Conical end face.

Neofibo NEOPL-1800A bare fiber polishing machine for PC/APC end-face polishing

Description:

          NEOPL-1800 Polishing Machine is specially designed for bare optical fiber polishing, to polish the fiber into PC end face, APC end face and tapered end face. Equipped with indexing circle and 3D adjustment holder, the polishing angle of optical fiber is adjustable from 0-60 degrees. External micrometer to adjust the fiber extension length and polishing pressure. Quick removal bare fiber adapter interface, holding different diameters of optical fiber. Suitable for polishing communication accessories, special optical fibers, medical fibers and energy fibers.NEOPL-1800A Automatic fiber polishing machine

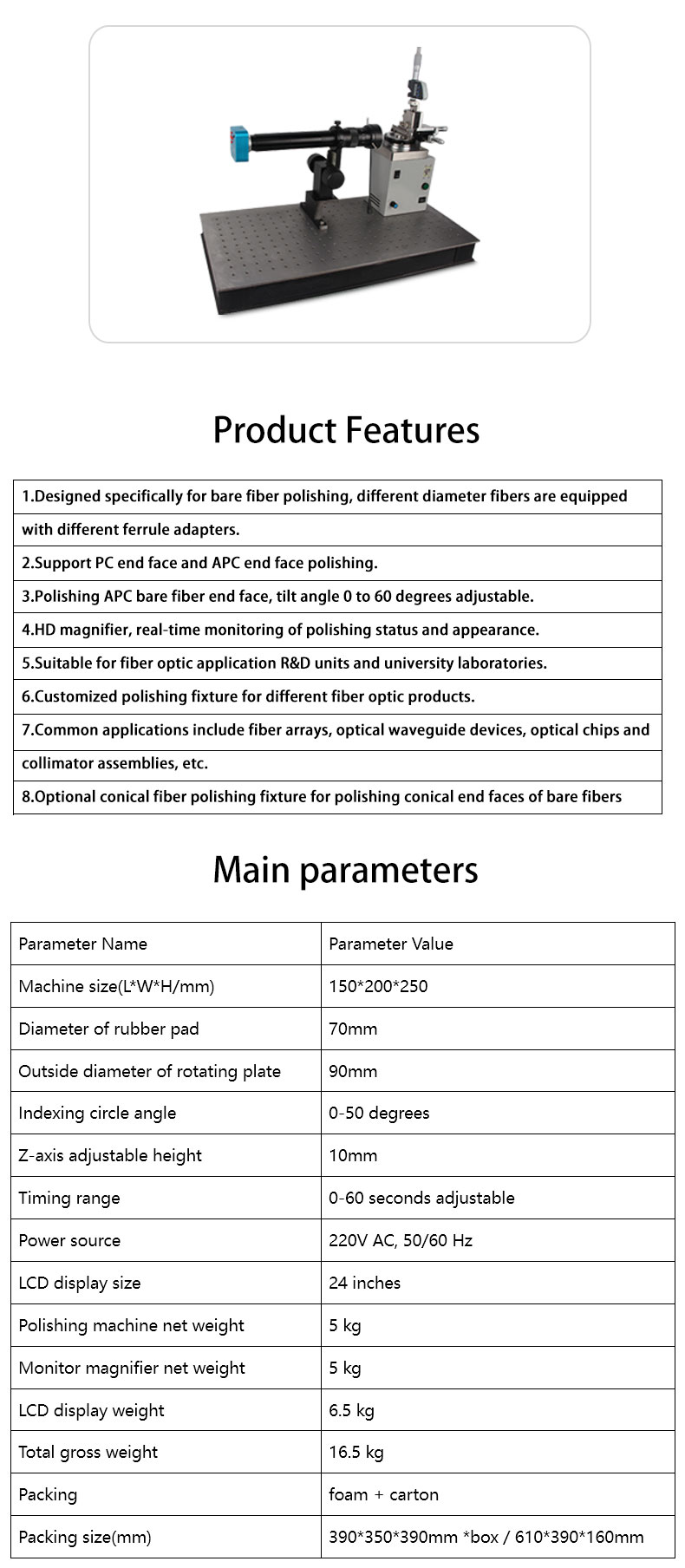

Product Features:
* Designed specifically for bare fiber polishing, different diameter fibers are equipped with different ferrule adapters.

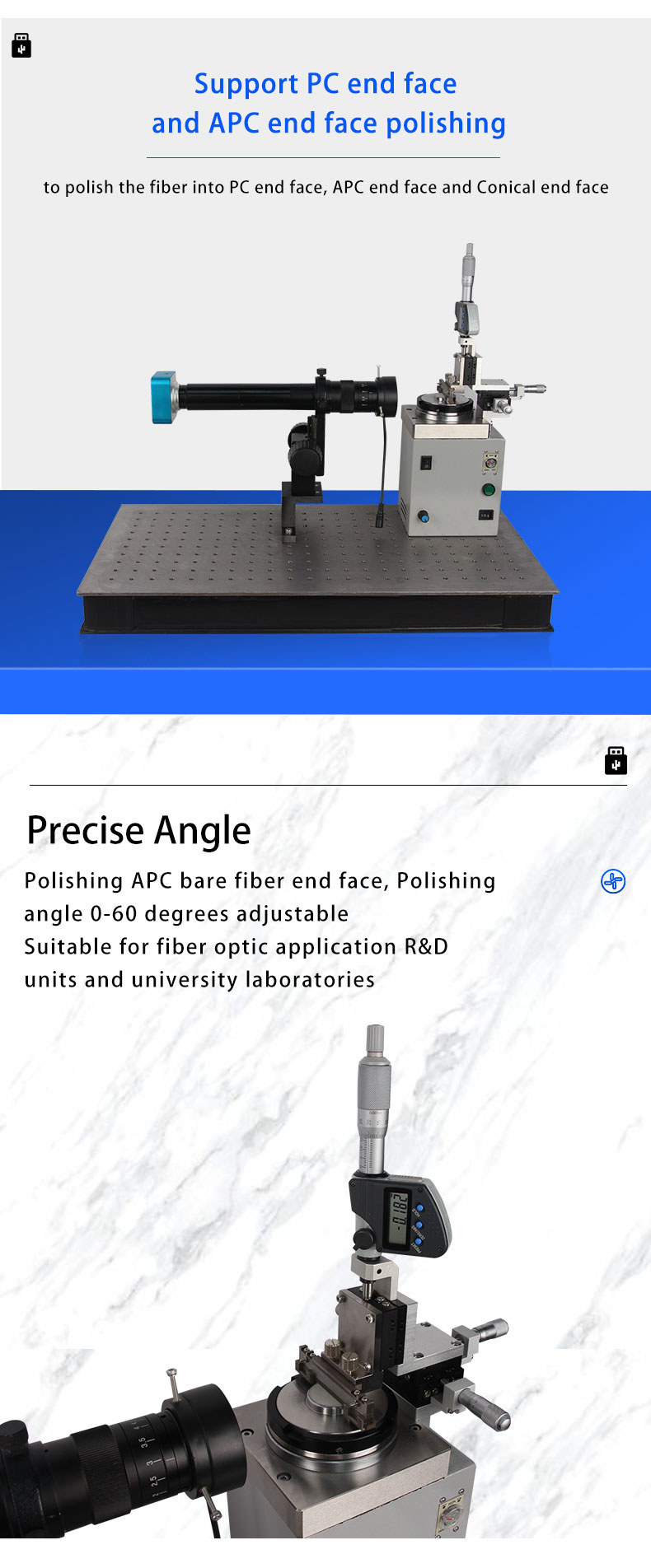

* Support PC end face and APC end face polishing.
* Polishing APC bare fiber end face, tilt angle 0 to 60 degrees adjustable.

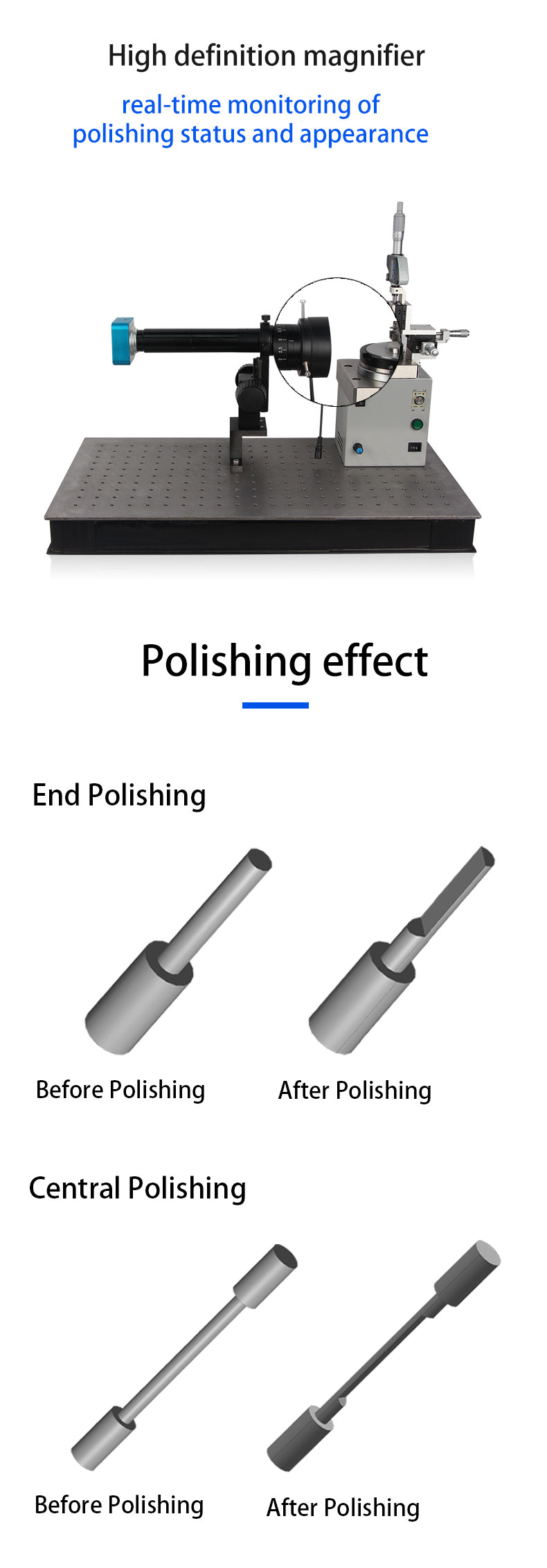

* HD magnifier, real-time monitoring of polishing status and appearance.
* Suitable for fiber optic application R&D units and university laboratories.
* Customized polishing fixture for different fiber optic products.
* Common applications include fiber arrays, optical waveguide devices, optical chips and collimator assemblies, etc.
* Optional tapered fiber polishing fixture for polishing tapered end faces of bare fibers
Specifications:
Machine Size
L 240(mm) × W 240(mm) × H 260(mm)
O.D. of Rotation Plate
127 mm(5 inch)
Time Settings
99 min 99 sec (Max)
Speed for Rotation Plate
90 rpm
Height of Plate Jumpiness
<10 um
Pressure Configuration
21 ~ 36 N/cm2
Work Temperature
10 ~ 40 Celsius degrees
Relative Humidity
15%~85%
Noice
unloading Less 50 dB
Libration
Working Status 0.25g 5~100Hz 10min
Stopping Status
0.50g 5~100Hz 10min
Power Input
220~230 VAC 50Hz/60Hz
Electric Power
40W/60W
Net Weight
28kg

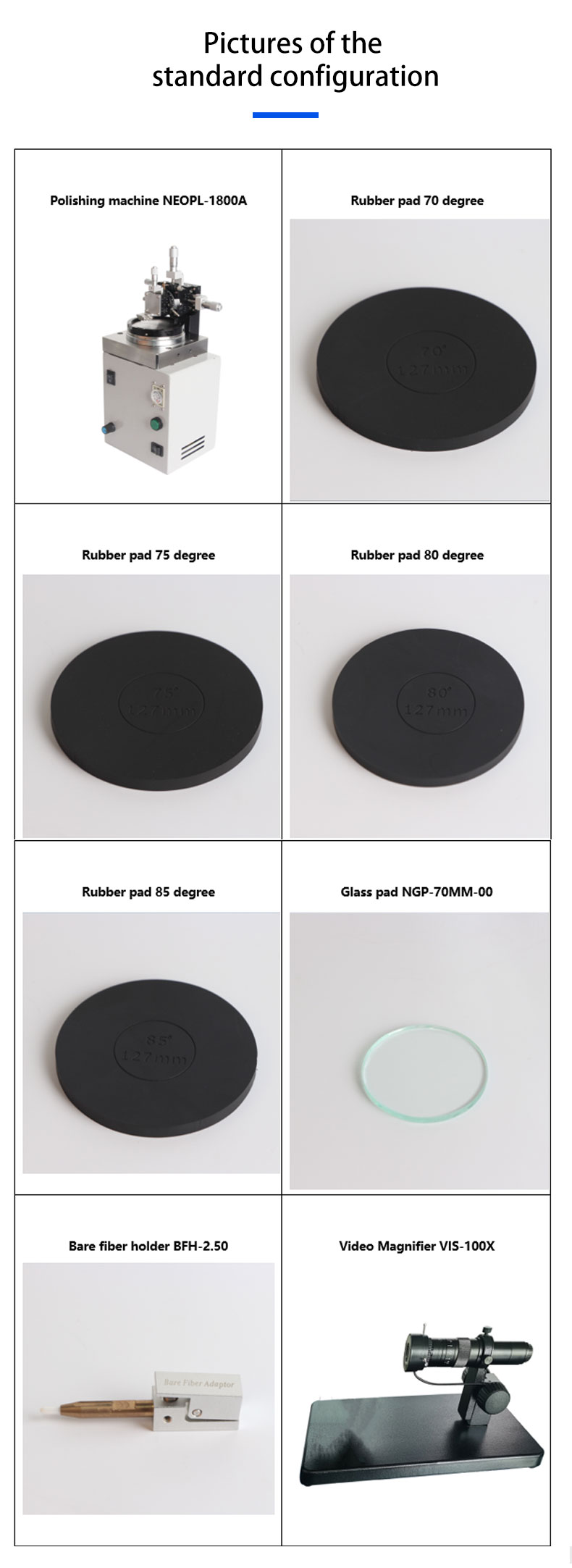

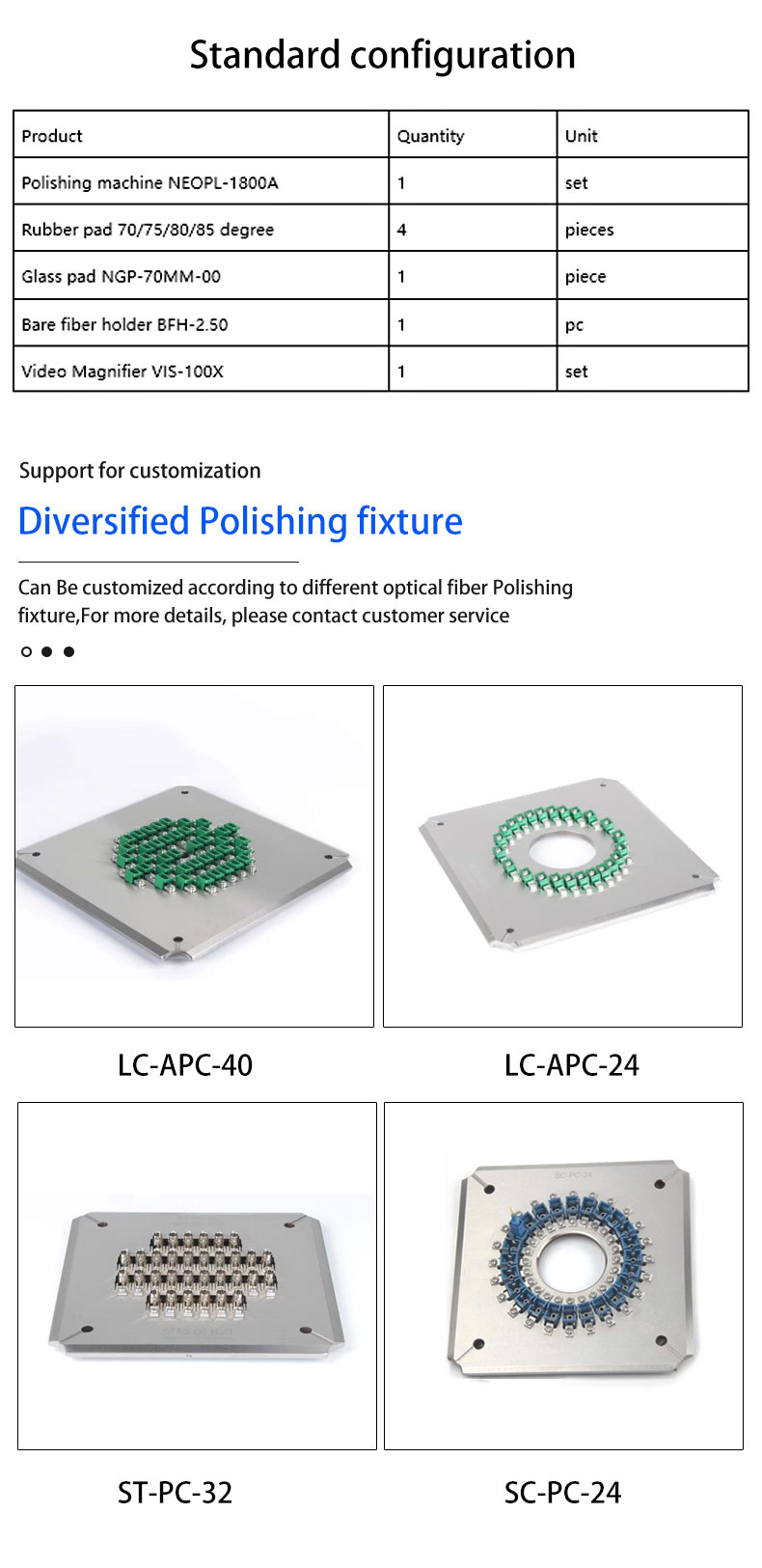

Standard configuration:
Product
Quantity
Unit
Polishing machine NEOPL-1800A
1
set
Rubber pad 70/75/80/85 degree
4
pieces
Glass pad NGP-70MM-00
1
piece
Bare fiber holder BFH-2.50
1
pc
Video Magnifier VIS-100X
1
set
