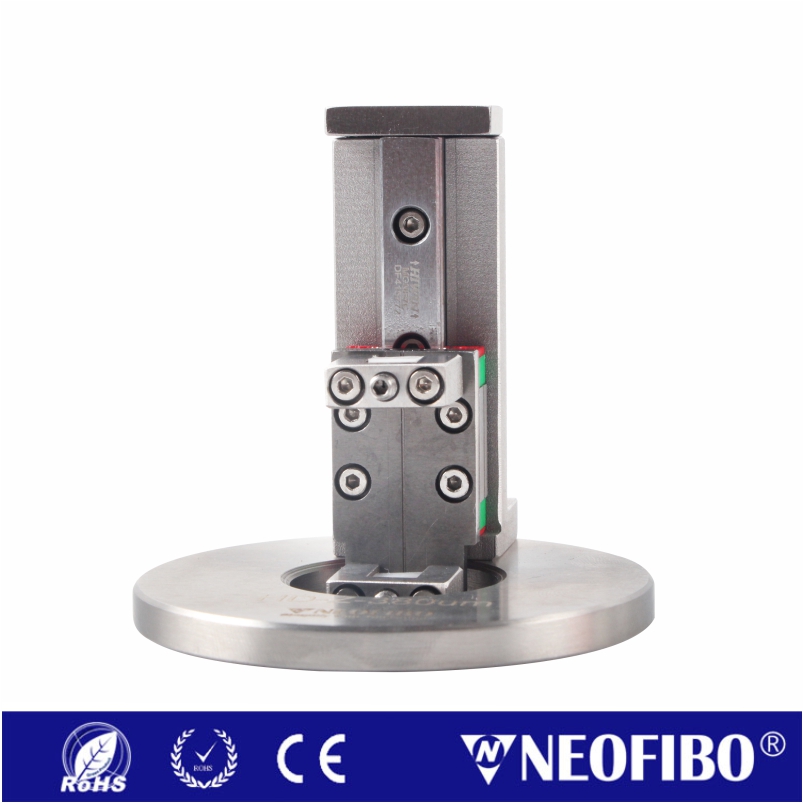

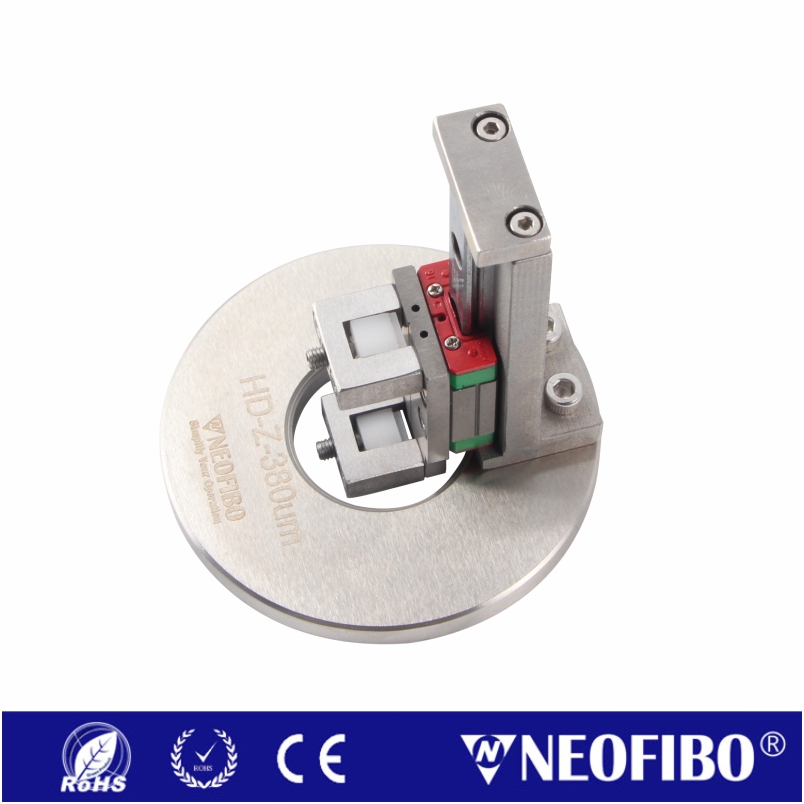

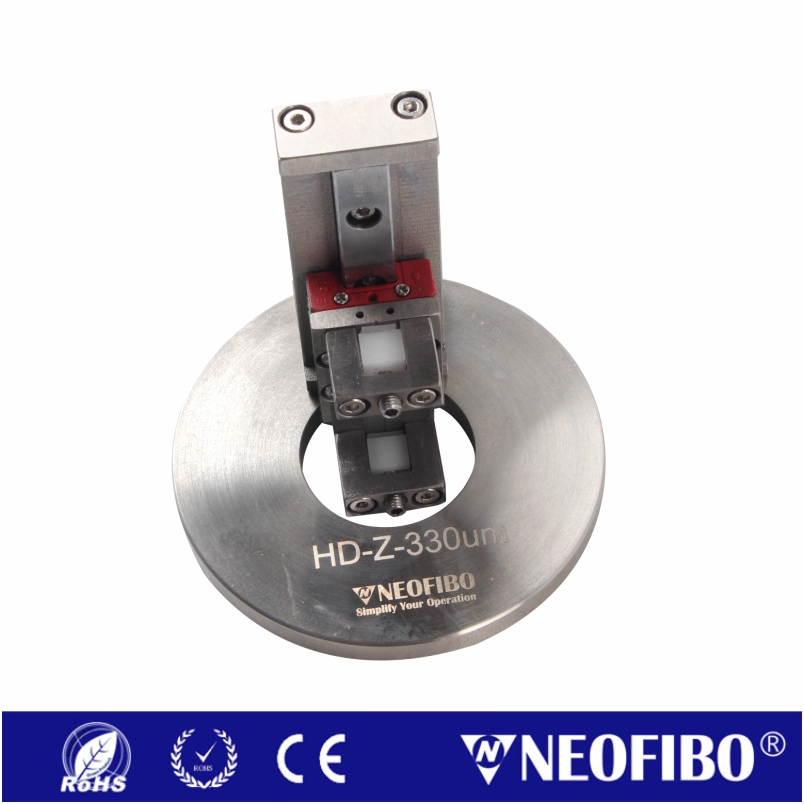

Bare Fiber Hand Polishing Fixture, HD-Z-330um/HD-Z-380um
Bare Fiber Hand Polishing Fixture, HD-Z-330um/HD-Z-380um
Product Description：
HD-Z-330um/HD-Z-380um Bare Fiber Hand Polishing Fixture is developed and designed by Shenzhen Newfable Technology Co., Ltd. and is specially used for grinding 330um or 380um diameter bare optical fiber, a new type of manual grinding fixture. This product adopts unique imitation U groove locking method, non-destructive clamping fiber cladding, one second locking core one second disassembly of the core, each core independent pressure, grinding the end face effect is excellent, can be customized for different diameter core grinding jig.
Key Feature:
- This jig is designed for grinding 330um\380um diameter bare optical fiber, one fiber at a time;
- Adopts a unique imitation U groove locking method, which can easily achieve non-destructive clamping of optical fibers and protect the optical fiber cladding;
- Applies the shortest fiber length of not less than 5mm;
- Can be customized with different fiber diameter sizes, choose any one size between 300-1000um to customize;
- Polishing parameters after debugging, the end face grinding effect is excellent.
Application：330um/380um diameter bare fiber
Technical Parameters：
| Model | HD-Z-330um/HD-Z-380um |
| Fixture type | Hand polishing fixture |
| Maxi number of fiber | 1 core |
| Polishing product category | 330um/380um diameter bare fiber |
| X-axis angle control (degree) | ≤0.15 |
| Y-axis angle control (degree) | ≤0.15 |
| Net weight | 0.5 kgs |
| Gross weight | 1 kgs |
| Packing size | 100*100*50mm |
Shenzhen Neofibo Technology Limited, founded in 2008 and based in Shenzhen, China, is committed to becoming a professional supplier of fiber optic polishing solutions. Our goal is to make our customers’ fiber connectivity more reliable.
Over the past 17 years, we’ve gathered a team of seasoned fiber optic professionals. Their expertise spans connector polishing and assembly, outside plant installation, transmission systems, datacom, CATV, and testing. Whether you’re a fiber optic scientist working on multi – gigabit, DWDM, or EDFA applications; a maintenance engineer for optical connecting systems; an outside plant contractor handling splicing and testing; a datacom manager dealing with multimode – to – single mode conversion; or an optical fiber component manufacturer in need of high – quality pigtails, consumables, and tools, Neofibo can provide you with proven solutions, products, and services.
Neofibo focuses on the field of fiber optic polishing solutions. We specialize in manufacturing fiber optic polishing machines, designing polishing fixtures for various optical fiber connectors, and offering complete polishing processes and materials for all types of fiber optic connectors.
We can also supply the full range of production equipment for fiber optic patch cords, including fiber optic polishing tools, end – face inspection microscopes, functional inspection and detection devices, raw materials like fiber optic cables and connectors, processing tools, and cleaning consumables.
Beyond products, Neofibo provides technical services and R & D support. We aspire to be your long – term, trusted partner.
What Does NEOFIBO Offer?
We provide a comprehensive range of high-quality fiber optic products, including patchcord production machines, polishing jigs (compatible with Seikoh Giken, Senko, Domaille standards, or custom-designed), polishing consumables, tools, cleaning supplies, tool kits, testing equipment, and splicing accessories. We are committed to delivering competitive pricing, superior quality, and fast turnaround!
What Are the Shipping Costs?
All listed prices are FOB Shenzhen. You may use your preferred courier; otherwise, we will arrange delivery via FEDEX, DHL, UPS, or another logistics provider (subject to confirmation), with shipping costs billed accordingly.
How Soon Will Goods Be Delivered?
– In-stock items: Dispatched within 1–2 business days after payment confirmation.
– Out-of-stock items: Estimated lead time of 3–10 working days.
How Can I Place an Order?
We offer three convenient ordering channels for our valued customers: online ordering, faxed order forms, or formal purchase orders sent via email.
What Is the Warranty Policy for NEOFIBO Products?
All NEOFIBO products (excluding consumables and items subject to normal wear and tear) come with a 1-year warranty from the date of purchase. For products with defects in materials or workmanship, NEOFIBO will, at its discretion, repair or replace the item—provided the product is returned to NEOFIBO (at the designated location) with prepaid shipping. This constitutes the exclusive remedy under the warranty.
