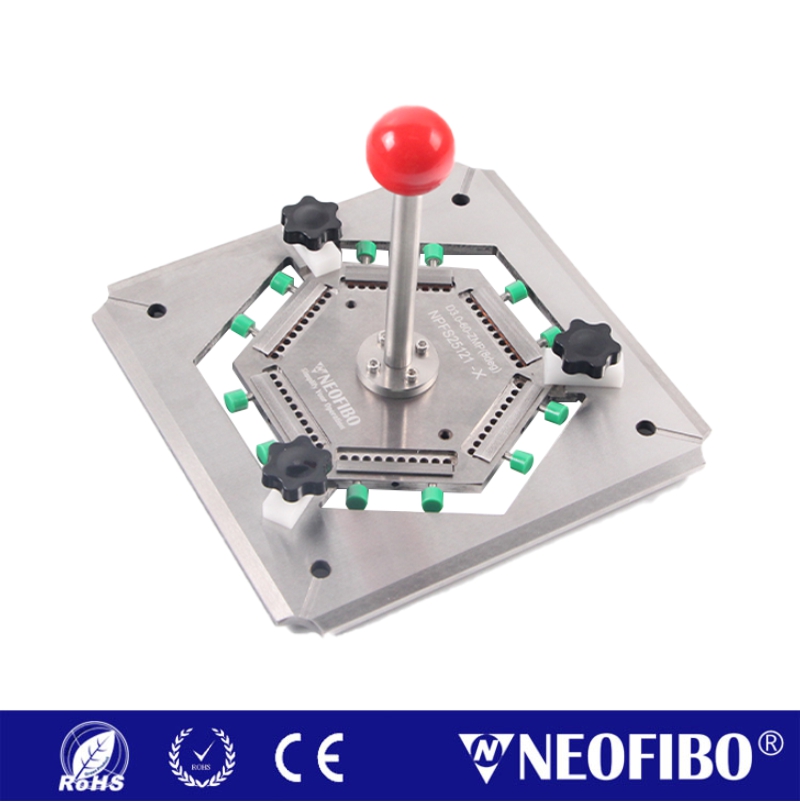

60 core 8deg BOB Ferrule Polishing Fixture, D3.0-60-ZMP（8deg）
60 core 8deg BOB Ferrule Polishing Fixture, D3.0-60-ZMP（8deg）
Product Desperation：
D3.0-60-ZPM(8deg) designed by Shenzhen Neofibo Technology Limited, which is specially used for polishing 3.0mm diameter steel plug pin assembly ferrules with 8 degrees inclination. The product adopts side screws and pushes the pressure block locking method, and can polish 60 ferrules at the same time, with high polishing efficiency. Can be customized for different diameters of steel plug pin assembly ferrules.
Key Features:
- This polishing fixture is suitable for 8 degree D3.0mm steel plug pin assembly ferrules polishing;
- High grinding efficiency, can grind 60 ferrules at a time;
- Screw flat push metal pressure block clamping method, easy and fast operation, non-destructive clamping;
- A grade end face and 3D yield, one time pass rate of more than 95%;
- Polishing fixture geometry in accordance with IEC standards;
- Suitable for foursquare polishing machines such as Neofibo NPL-2000D;
- Polishing fixtures are characterized by high reliability and consistency.
Application：diameter 3.0mm, length 4.5mm, 8 degree D3.0mm steel plug pin assembly ferrules
Specification：
| Model | D3.0-60-ZMP（8deg） |
| Fixture Diameter | 127mm |
| Max number of cores | 60-position |
| Grinding product type | Diameter 3.0mm, length 4.5mm, 8 degree
D3.0mm steel plug pin assembly ferrules |
| Fixture loading method | Screw Flat Push Metal Press |
| Applicable models | NPL-2000D，NEOPL-2000P，NEOPL-2000A |
| Net weight | 0.8 kgs |
| Gross weight | 1.5 kgs |
| Packing Size | 220*220*100mm |
Order Information:
| NO. | Model | Product Name |
| 1 | D3.0-60-ZMP（8deg） | 60-pole 8 degrees 3.0mm steel plug pin assembly ferrules |
| 2 | BOB-24-SQ（11.7deg） | 24-pole 11.7 degree BOB ferrule polishing fixture |
| 3 | BOB-24-ZMP6SP(11.7deg) | 24-pole 11.7-degree ferrule polishing fixture |
| 4 | D3.00-24-SQ(11.7deg) | 24-pole 11.7 degree 3.0mm ferrule polishing fixture |
| 5 | D3.00-24-ZMP6SP(11.7deg) | 24-pole 11.7-degree 3.0mm ferrule polishing fixture |
