MiniMT-APC-24DM（6deg）Non-destructive Clamping Mini MT Ferrule Polishing Fixture Polishing Jig
MiniMT-APC-24DM（6deg）Non-destructive Clamping Mini MT Ferrule Polishing Fixture Polishing Jig
Model: MiniMT-APC-24DM（6deg）
Place of Origin: Shenzhen, China
Description:
Description:

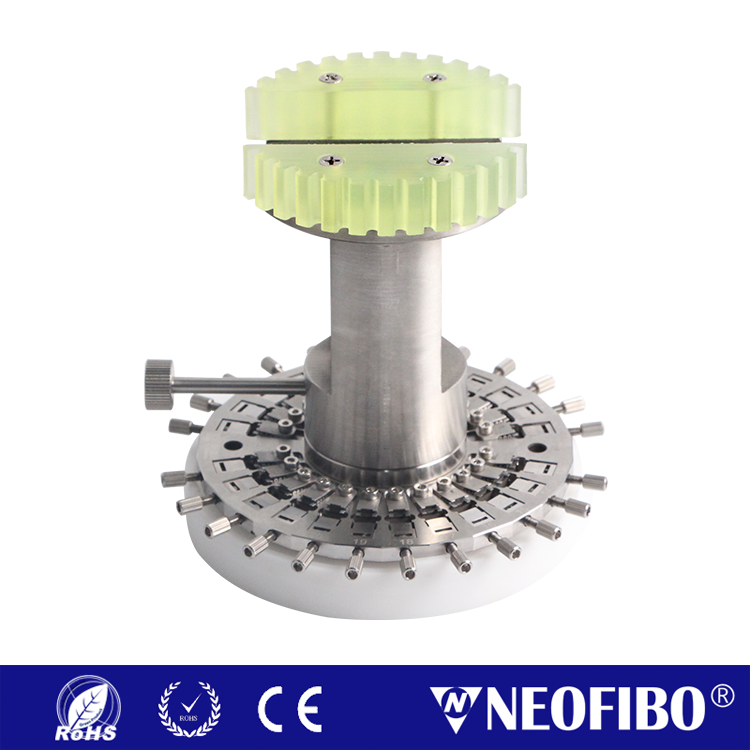

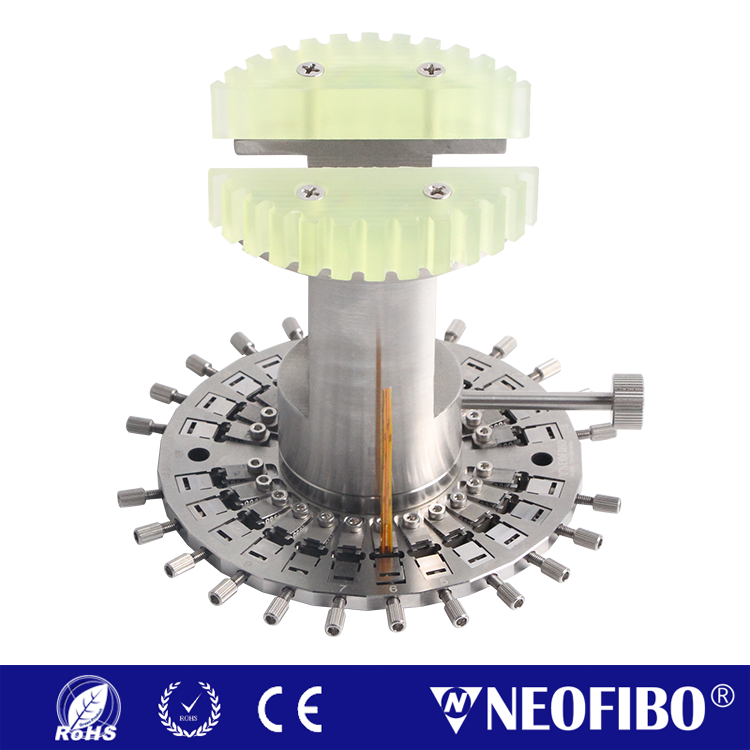

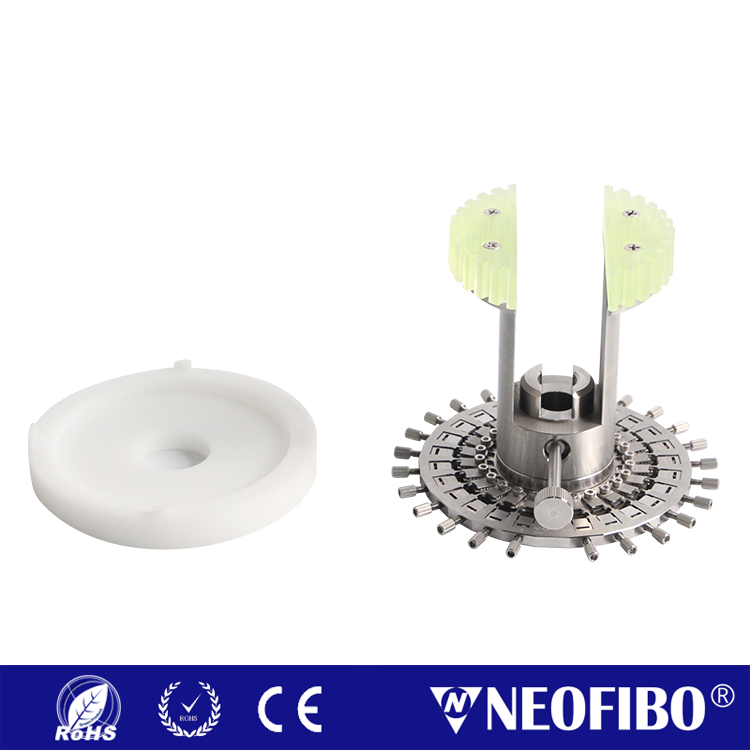

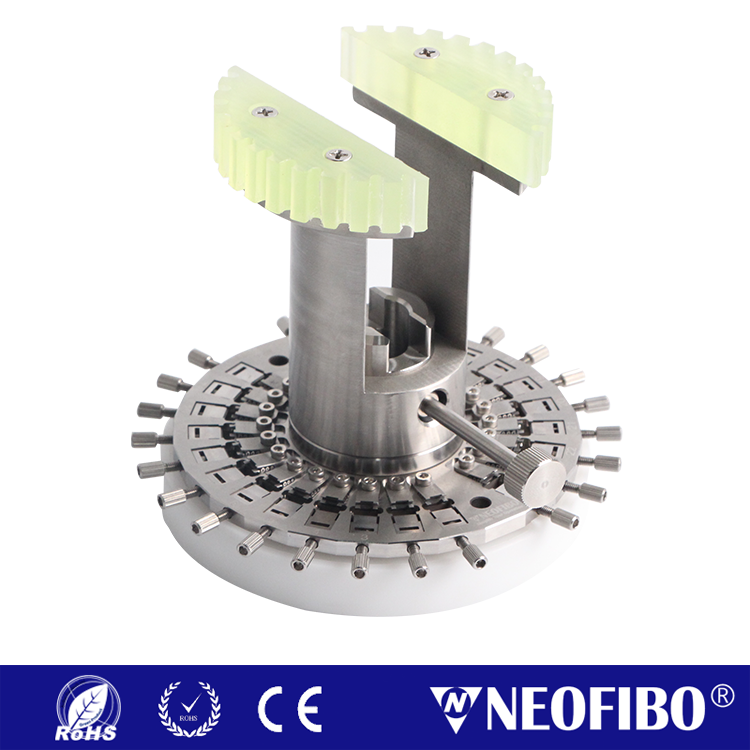

miniMT-APC-24DM(6deg) miniMT ferrule polishing fixture is developed and designed by Shenzhen Neofibo Technology Limited, which is specialized in polishing mini MT ferrules. The product adopts flat push type screw locking method, the Z-axis can be adjusted to effectively control the polishing length of the light beam, excellent polishing effect of the end-face, can be customized for different diameters of the light beam polishing fixture.
Key Features:
- This kind of polishing fixturesis suitable for MT, miniMT, mini Jumper ferrules polishing;
- It can polishingPC, APC end-face in, polishing 24 ferrules at a time;

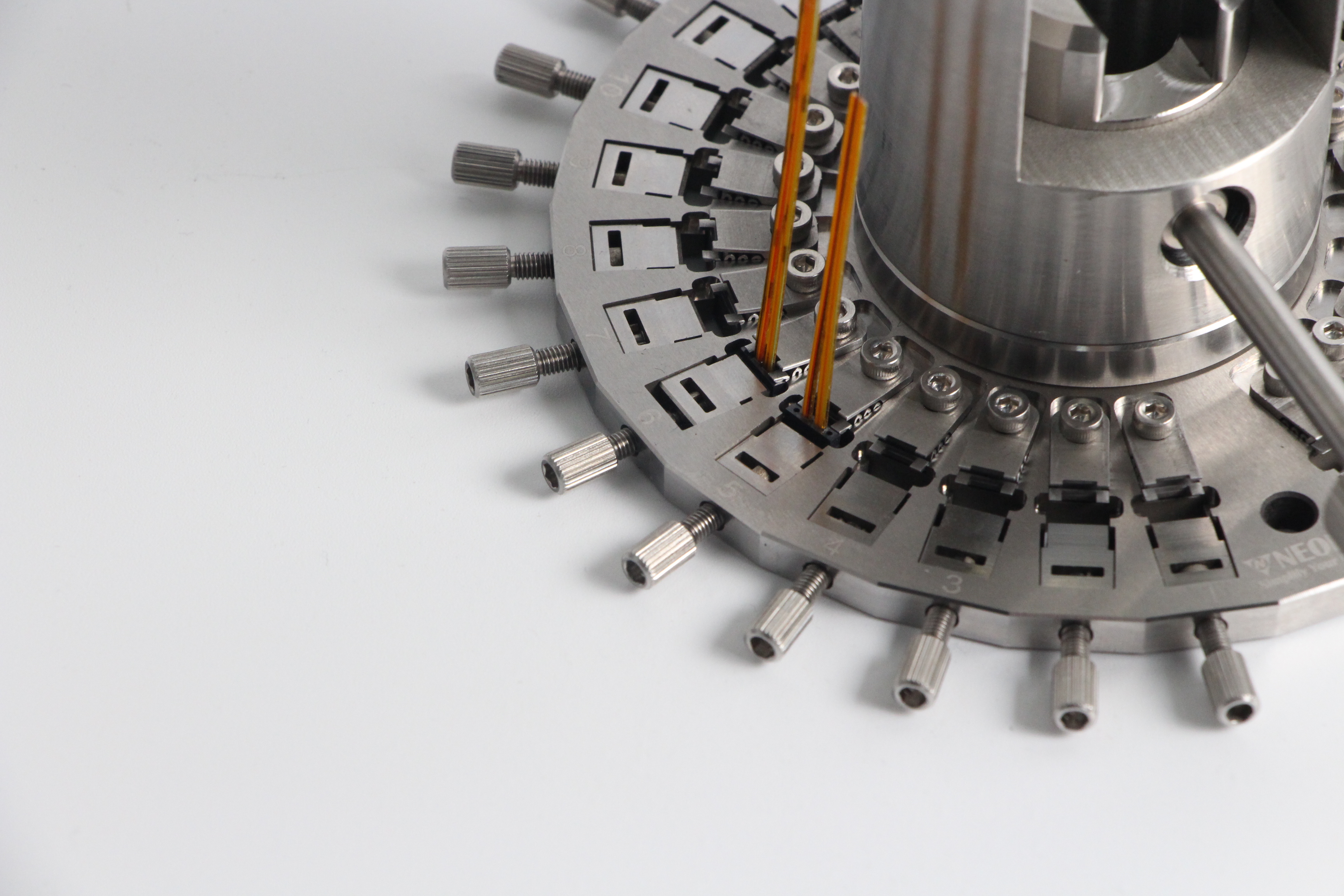

- Easy and quick loading fixture, rated torque fastening, non-destructive clamping;
- A grade end-face and 3D yield, a pass rate of more than 95%.
- Effective guarantee of polishing angle ±15 degree;
- CustomizationAPC 8 degree/6 degree and other angle clamps;
- Suitable for NeofiboFPM-5000 polishing machine;
- The polishing fixture has the characteristics of high reliability and high consistency.
Applications:
MT, miniMT, mini Jumper ferrules.
Technical Parameters：
| Model | miniMT-APC-24DM(6deg) |
| Disk Diameter | 127mm |
| Maximum number of cores | 24 positions |
| Grinding product category | miniMT ferrules |
| X-axis angle control (degree) | ≤0.15 |
| Y-axis angle control (degree) | ≤0.15 |
| Applicable models | FPM-5000 |
| Net weight | 0.8 kgs |
| Gross weight | 1.5 kgs |
| Packing size | 220*220*100mm |
Ordering Information:
| No. | Model | Product Name | Features |
| 1 | MT-APC-24DM | 24-pole MT APC Ferrule Polishing Fixture | Torque rated metal clamp fixing, non-destructive clamping |
| 2 | MT-PC-24DM | 24-pole MT UPC Ferrule Polishing Fixture | Torque rated metal clamp fixing, non-destructive clamping |
| 3 | miniMT-APC-24DM | 24-pole mini MT APC Ferrule Polishing Fixture | Torque-Rated Metal Press Block Fixed, Non-Destructive Clamping |
| 4 | miniJMP-APC-24DM | 24-pole mini Jumper APC Ferrule Polishing Fixture | Torque Rated Metal Press Fixed, Non-Destructive Clamping |
Shenzhen Neofibo Technology Limited, founded in 2008 and based in Shenzhen, China, is committed to becoming a professional supplier of fiber optic polishing solutions. Our goal is to make our customers’ fiber connectivity more reliable.
Over the past 17 years, we’ve gathered a team of seasoned fiber optic professionals. Their expertise spans connector polishing and assembly, outside plant installation, transmission systems, datacom, CATV, and testing. Whether you’re a fiber optic scientist working on multi – gigabit, DWDM, or EDFA applications; a maintenance engineer for optical connecting systems; an outside plant contractor handling splicing and testing; a datacom manager dealing with multimode – to – single mode conversion; or an optical fiber component manufacturer in need of high – quality pigtails, consumables, and tools, Neofibo can provide you with proven solutions, products, and services.
Neofibo focuses on the field of fiber optic polishing solutions. We specialize in manufacturing fiber optic polishing machines, designing polishing fixtures for various optical fiber connectors, and offering complete polishing processes and materials for all types of fiber optic connectors.
We can also supply the full range of production equipment for fiber optic patch cords, including fiber optic polishing tools, end – face inspection microscopes, functional inspection and detection devices, raw materials like fiber optic cables and connectors, processing tools, and cleaning consumables.
Beyond products, Neofibo provides technical services and R & D support. We aspire to be your long – term, trusted partner.
What Does NEOFIBO Offer?
We provide a comprehensive range of high-quality fiber optic products, including patchcord production machines, polishing jigs (compatible with Seikoh Giken, Senko, Domaille standards, or custom-designed), polishing consumables, tools, cleaning supplies, tool kits, testing equipment, and splicing accessories. We are committed to delivering competitive pricing, superior quality, and fast turnaround!
What Are the Shipping Costs?
All listed prices are FOB Shenzhen. You may use your preferred courier; otherwise, we will arrange delivery via FEDEX, DHL, UPS, or another logistics provider (subject to confirmation), with shipping costs billed accordingly.
How Soon Will Goods Be Delivered?
– In-stock items: Dispatched within 1–2 business days after payment confirmation.
– Out-of-stock items: Estimated lead time of 3–10 working days.
How Can I Place an Order?
We offer three convenient ordering channels for our valued customers: online ordering, faxed order forms, or formal purchase orders sent via email.
What Is the Warranty Policy for NEOFIBO Products?
All NEOFIBO products (excluding consumables and items subject to normal wear and tear) come with a 1-year warranty from the date of purchase. For products with defects in materials or workmanship, NEOFIBO will, at its discretion, repair or replace the item—provided the product is returned to NEOFIBO (at the designated location) with prepaid shipping. This constitutes the exclusive remedy under the warranty.
