Jonard Tools Micro Duct Fiber Optic Cable Slit & Ring Tool MS-326
Jonard Tools Micro Duct Fiber Optic Cable Slit & Ring Tool
Model: MS-326
Brand: Neofibo
Origin：China
Description:
The MS-326 fiber optic mid span slit and ring tool is designed to provide easy access into fiber optic cables specifically used in micro ducts. These cables have a thin wall jacket design that is difficult to open without causing damage to the buffer tubes inside, but the MS-326 addresses that concern. The MS-326 will also slit thin wall buffer tubes. Building on the Ms-6 and ms-26 fiber optic mid span slitting tools, we have incorporated a ring feature in the tool to make it even more versatile，one side of the tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut).
groove sizes: 5.0 – 5.6 mm | 6.0 – 6.6 mm | 7.2 – 7.8 mm | 7.8 – 8.4 mm | 9.4 – 10 mm
Key Features:
- Versatile use: The slitter has 5 different sized precision grooves to accommodate cables 5 – 10 mm in diameter without damaging the fiber inside；
- One side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)；
- Lightweight and portable: weighing only70g and measuring 82*43*60mm With included tethering hole, This tool is perfect to use in tight spaces and on the goIndicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
- Specially designed: This tool was specially designed for Corning fiber cables such as MiniXtend binderless FastAccess, HD MiniXtend, and similar style cables
- Easy operation: simply open the tool, place the fiber in the proper groove, Lock the tool, and either pull the fiber through to slit, or rotate the tool around the fiber to ring
- Blades last for 5,000 slits/cuts
Replacement blade: MSB-5010
Specification:
| Model | MS-326 |
| groove sizes | 5.0 – 5.6 mm | 6.0 – 6.6 mm | 7.2 – 7.8 mm | 7.8 – 8.4 mm | 9.4 – 10 mm |
| Material | Plastic |
| Dimensions | 82*43*60mm （L*W*H） |
| Weight | 70g |
| Brand | Jonard Tools |
| Blade life time | 5,000 slits/cuts |
| Replacement blade | MSB-5010 (can be purchased separately) |
| Grip Type | Ergonomic |

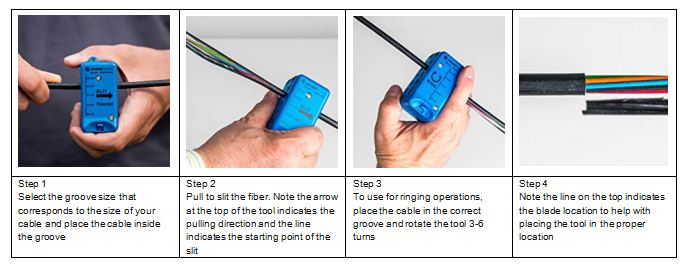

How to Use:

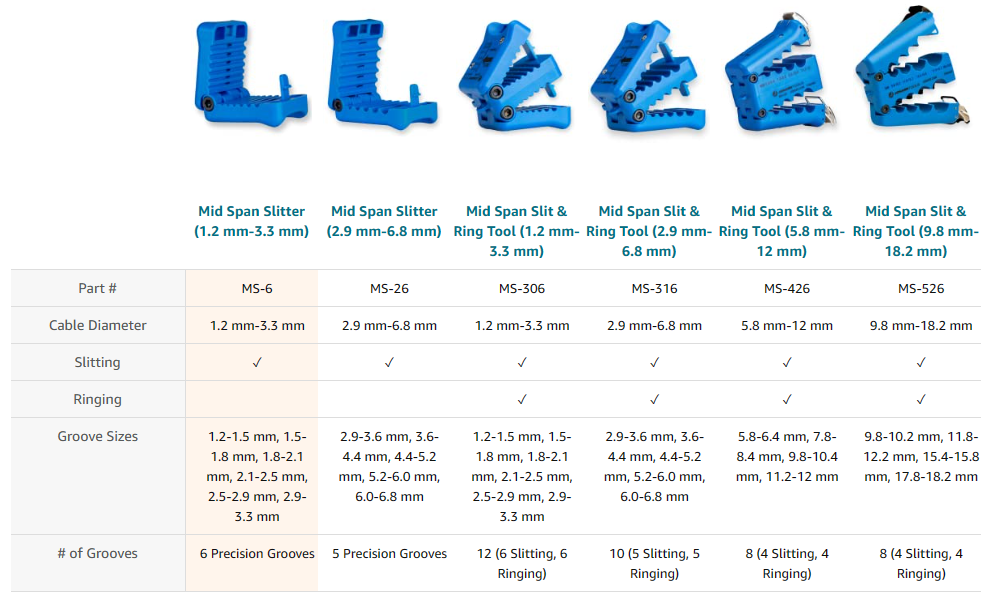

Other type:
