Heavy-duty Multifunctional Cable Cutting Machine AOFC-5001
Heavy-duty Multifunctional Cable Cutting Machine AOFC-5001
Model: AOFC-5001
Place of origin: Guangdong China
Description:
AOFC-5001 is the model of big diameter cable cutting machine, which is Specially designed for armored cable, fiber optic patch cord, fiber optic cable, cat6 cable, cat8 cable,cat5 cable, electric cable and Ethernet cable. Its cable diameter range is 0.9 mm to 16 mm. It could receive cable with bowls and cable receiving machine. When using cable receiving machine, cable could be aligned and coiled into tight cable rings. You could also divide big cable drum into small cable drum with short cable.
Key Features:
1.Cutting cable diameter range:1.6~16.0mm
2.Color interface,one-key switch between Chinese and English operation menu
3.Pulley Synchronous Drive, accurately calculate the length;
4.Functions:automatic cable closing,automatic cutting,optical cable protection,pause in the middle;
5.Equipped with a foot switch, easy and quick to operate;
6.Cable receiving bowl,accommodating 3~200 meters of optical cable,wound into coil;

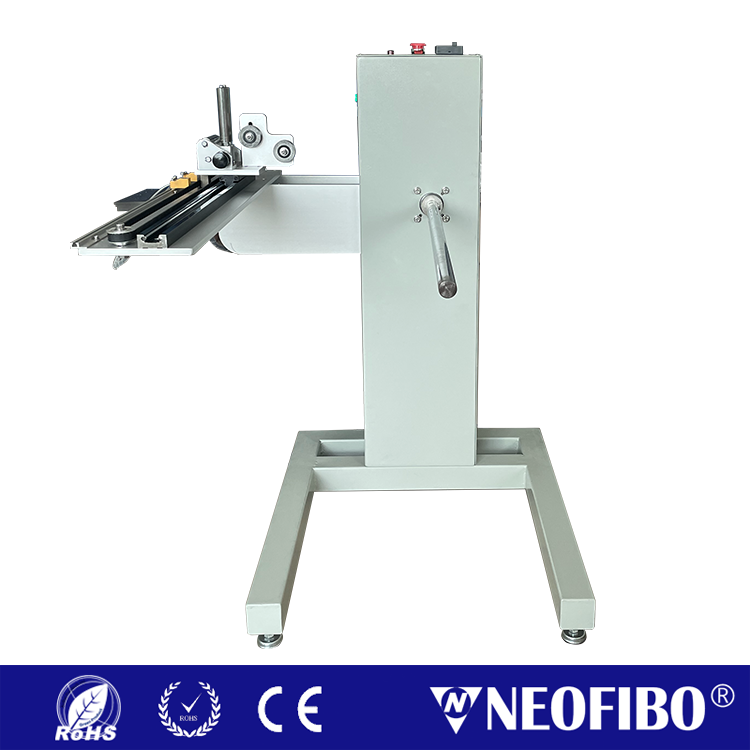

7.Cable receiving machine,which can accommodate 50~2000 meters of optical cable, has the function of arranging cables,and can cut the large optical cable drum into small cables drum;
8.Fast speed,low noise, no cable blocking, stable operation;
9.Flexible setting of length and speed parameters, high production efficiency.
Specification:
| Description | Capacity |
| Operation System | Chinese & English, Touch Screen |
| Cutting Length | 1 to 999 mtrs |
| Cable Diameter | Φ6.0mm to Φ16mm(max) |
| Cable Type | Jacket fiber, UTP, CAT6, Armored cable, FTTH cable |
| Running Speed(m/sec) | 0.5 – 1.6 meters per second |
| Length Accuracy | no more than 0.3% |
| Power Consumption | 4500 Watt, 220V AC, 50/60Hz |
| Pressure Source | 0.4 to 0.6Mpa |
| Cable Sending Machine Load Weight | Less than 150 kgs |
| Cable Drum size | CSM: max Φ900*700 mm, CRM: max Φ600*500 mm |
| Cable Drum Hole diameter | 50-80 mm |
| Cable Collection Bowl Size | Φ350*200 mm |
| Assembled Machine Size | 300cm * 80cm * 150cm |
| Net & Gross Weight | 400 kgs / 450kgs |
Standard Configuration：
| No | Description | Qty |
| 1 | Cable sending machine CSM-350KG (standard) | 1 set |
| 2 | Cable sending machine CSM-150KG (optional) | / |
| 3 | Main Machine | 1 set |
| 4 | Cable Receiving Machine CRM-40KG | 1 set |
| 5 | AC Power Cable | 3 pieces |
| 6 | Data cable | 2 piece |
| 7 | Foot Switch | 1 piece |
| 8 | 120 degree Bent Steel Guide Pipe | 1 pieces |
| 9 | Straight Steel Guide Pipe | 1 pieces |
| 10 | Big Cable Receiving Bowl | 2 pieces |
Other model:
| model | AOFC-2001(Align) | AOFC-2001 | AOFC-5001 |
| Operation System | Chinese & English, Touch Screen | ||
| Cutting Length | 3 to 2000 mtrs | 3 to 200 mtrs | 3 to 2000 mtrs |
| Cable Diameter | Φ0.9mm to Φ6.00mm(max) | Φ0.9mm to Φ16mm(max) | |
| Cable Type | Single core optical cable,Duplex cable,Jacket fiber, Ribbon Fiber, UTP, CAT6 | Jacket fiber,Armored Optical Cable | |
| Running Speed (m/s) | 0.5 – 1.6 meters per second | ||
| Length Accuracy | no more than 0.3% | ||
| Power Consumption | 2200Watt, 220V AC, 50/60Hz | 450 Watt, 220V AC, 50/60Hz | 4500 Watt, 220V AC, 50/60Hz |
| Pressure Source | 0.4 to 0.6Mpa | ||
