Heavy-duty Multifunctional Cable Cutting Machine AOFC-3001

AOFC-3001 is the model of big diameter cable cutting machine, which is Specially designed for armored cable, fiber optic patch cord, fiber optic cable, cat6 cable, cat8 cable,cat5 cable, electric cable and Ethernet cable. Its cable diameter range is 0.9 mm to 16 mm. It could receive cable with bowls and cable receiving machine. When using cable receiving machine, cable could be aligned and coiled into tight cable rings. You could also divide big cable drum into small cable drum with short cable.

Heavy-duty Multifunctional Cable Cutting Machine AOFC-3001

Model: AOFC-3001
Place of origin: Guangdong China

Description:

AOFC-3001 is the model of big diameter cable cutting machine, which is Specially designed for armored cable, fiber optic patch cord,fiber optic cable, cat6 cable, cat8 cable,cat5 cable, electric cable and Ethernet cable. Its cable diameter range is 0.9 mm to 16 mm. It could receive cable with bowls and cable receiving machine. When using cable receiving machine, cable could be aligned and coiled into tight cable rings. You could also divide big cable drum into small cable drum with short cable.

Key Features:

1.Design for big diameter cable cutting and aligning.

2.Separate cable sending machine, and loading weight more than 150 kgs.

3.Intelligent cable receiving machine could coil cable into rings or align cable onto small drums.

4.Max loading weight for cable receiving machine is 60 kgs

5.Cut different cables into customized length and wind cable into circularity.

6.Speed is adjustable for cable receiving machine.

7.High accuracy cutting length for machine, tolerance is less than 0.03%

8.Automatic winding and cutting functions to protect the optical fiber.

9.Customize cable length on control system.

10.Friendly touch screen interface, compact window.

11.Customized language: Chinese / English / Korea or other.

12.Easy to handle and Low noise.

Specification:

Description Capacity
Operation System Chinese & English, Touch Screen
Cutting Length 1 to 999 mtrs
Cable Diameter Φ6.0mm to Φ16mm(max)
Cable Type Jacket fiber, UTP, CAT6, Armored cable, FTTH cable
Running Speed(m/sec) 0.5 – 1.6 meters per second
Length Accuracy no more than 0.3%
Power Consumption 4500 Watt, 220V AC, 50/60Hz
Pressure Source 0.4 to 0.6Mpa
Cable Sending Machine Load Weight Less than 150 kgs
Cable Drum size CSM: max Φ900*700 mm, CRM: max Φ600*500 mm
Cable Drum Hole diameter 50-80 mm
Cable Collection Bowl Size Φ350*200 mm
Assembled Machine Size 300cm * 80cm * 150cm
Net & Gross Weight 400 kgs / 450kgs

Remark: If you have special requirements, please feel free to contact us.

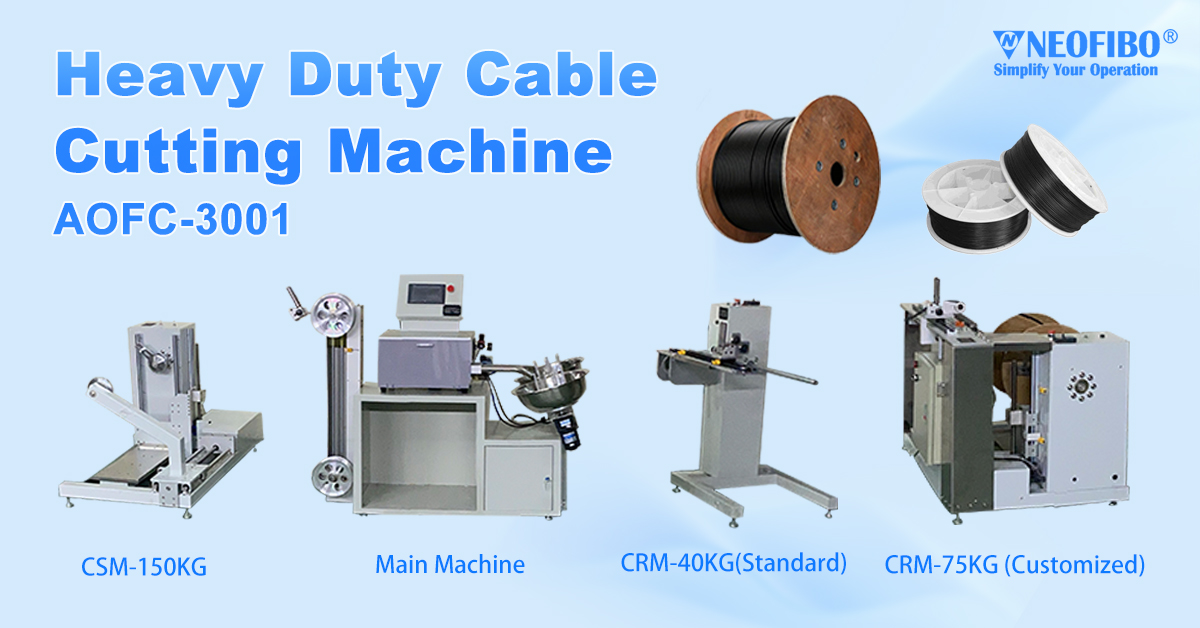

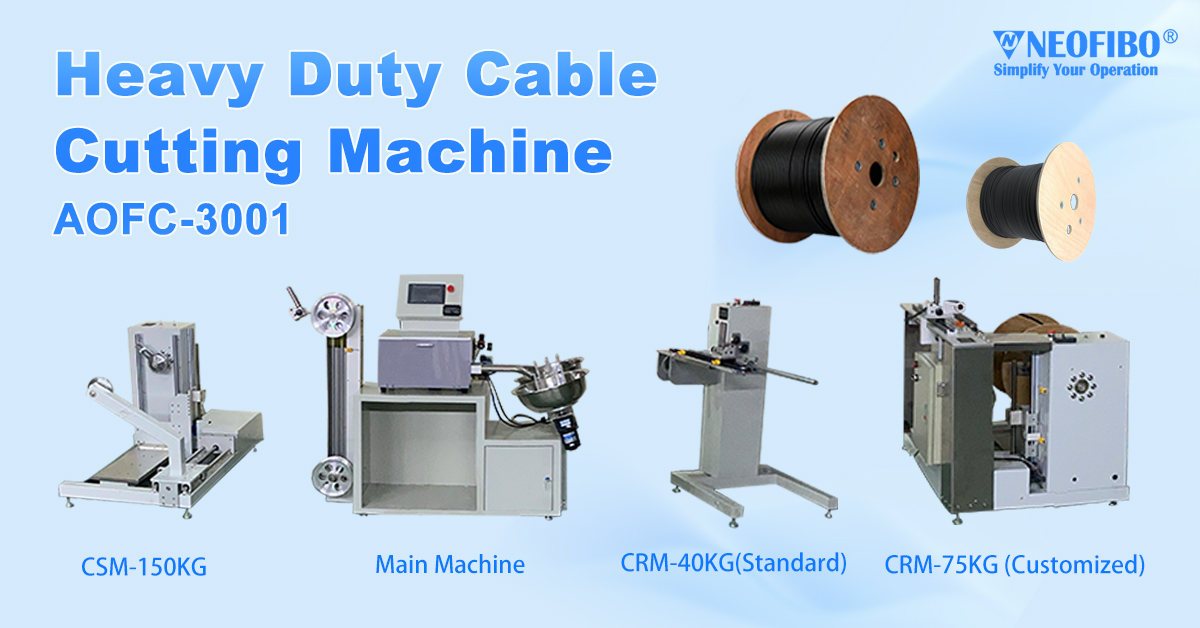

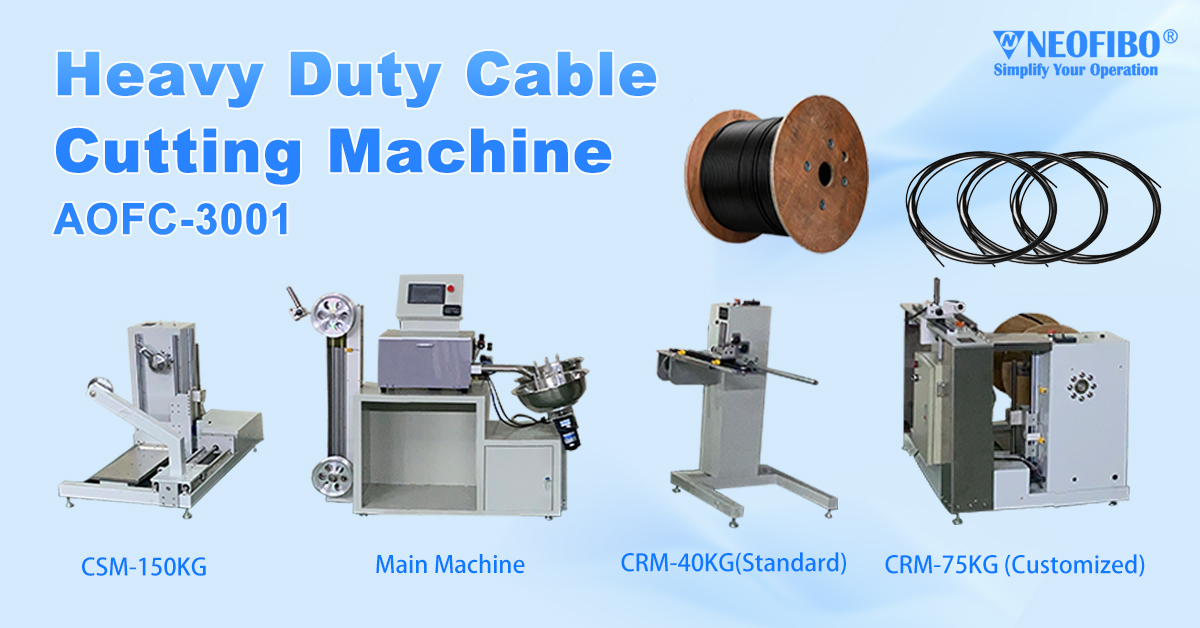

Standard Configuration:

No Description Qty

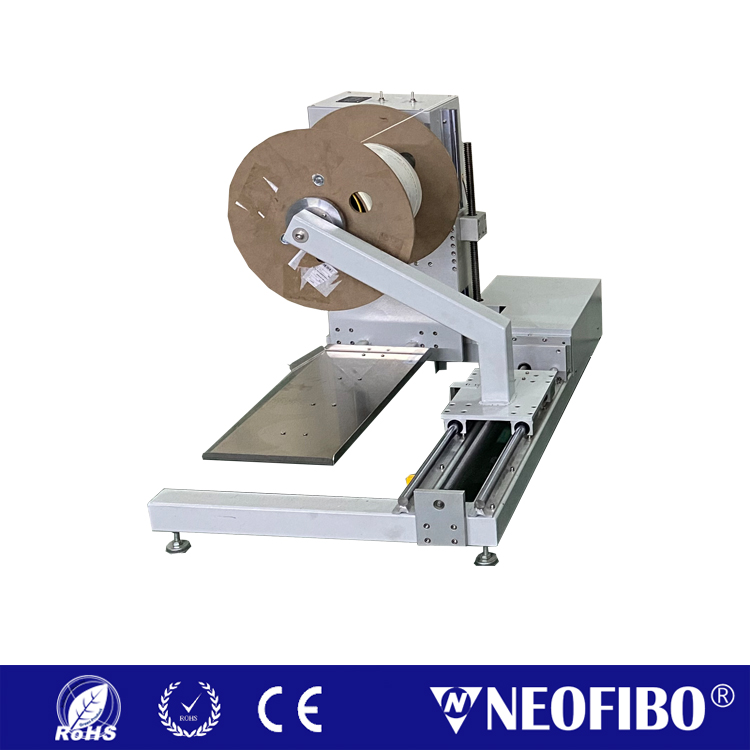

1 Cable Sending Machine CSM-150KG 1 set

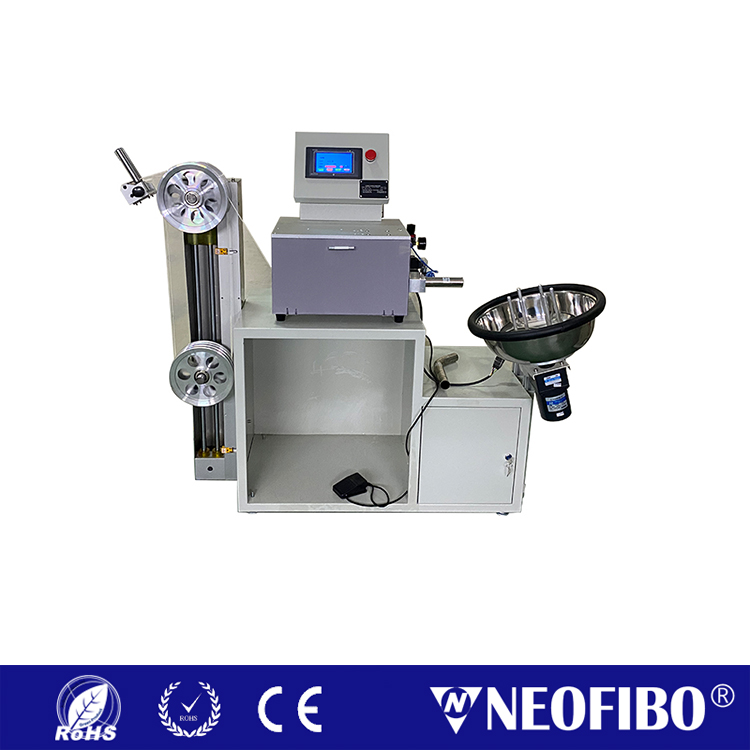

2 Main Machine 1 set

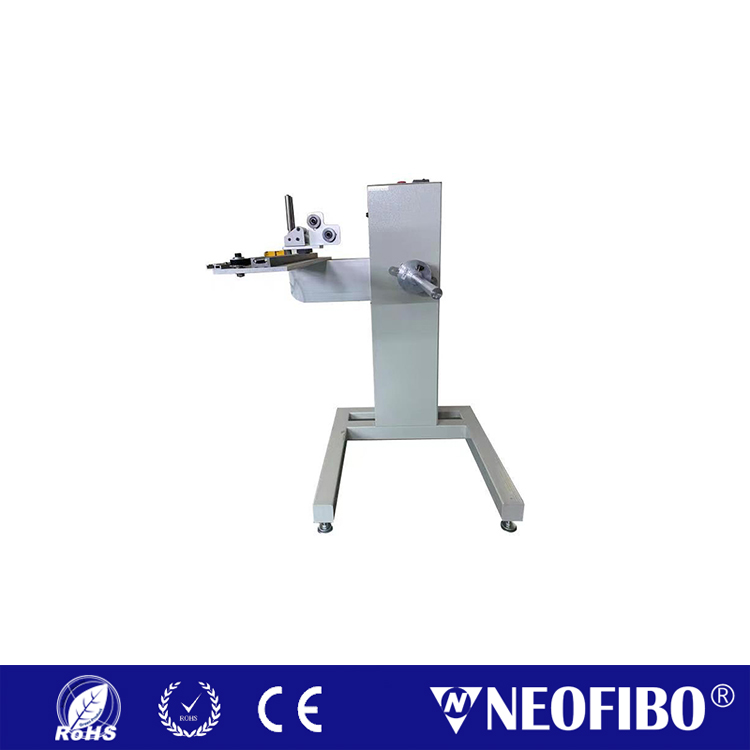

3 Cable receiving machine CRM-40KG (standard) 1 set
4 Cable receiving machine CRM-75KG (optional) /
5 AC Power Cable 3 pieces
6 Data cable 2 piece
7 Foot Switch 1 piece
8 120 degree Bent Steel Guide Pipe 1 pieces
9 Straight Steel Guide Pipe 1 pieces
10 Big Cable Receiving Bowl 2 pieces

Other model:

model AOFC-2001(Align) AOFC-2001 AOFC-3001
Operation System Chinese & English, Touch Screen
Cutting Length 3 to 2000 mtrs 3 to 200 mtrs 3 to 2000 mtrs
Cable Diameter Φ0.9mm to Φ6.00mm(max) Φ0.9mm to Φ16mm(max)
Cable Type Single core optical cable,Duplex cable,Jacket fiber, Ribbon Fiber, UTP, CAT6 Jacket fiber,Armored Optical Cable
Running Speed (m/s) 0.5 – 1.6 meters per second
Length Accuracy no more than 0.3%
Power Consumption 2200Watt, 220V AC, 50/60Hz 450 Watt, 220V AC, 50/60Hz 4500 Watt, 220V AC, 50/60Hz
Pressure Source 0.4 to 0.6Mpa
