Fiber Optic Vertical Curing Oven OFO-5200

OFO-5200 Curing Oven is a type of universal curing oven for fiber optic connectors, it is available for general connectors (such as FC/SC/ST, MU/LC) after glue injecting. The heating board could contain 52 connector ferrules at most. There is indicator light, timer and temperature indicator. Simply operation and perfect solidified effect.

Fiber Optic Vertical Curing Oven OFO-5200

Description

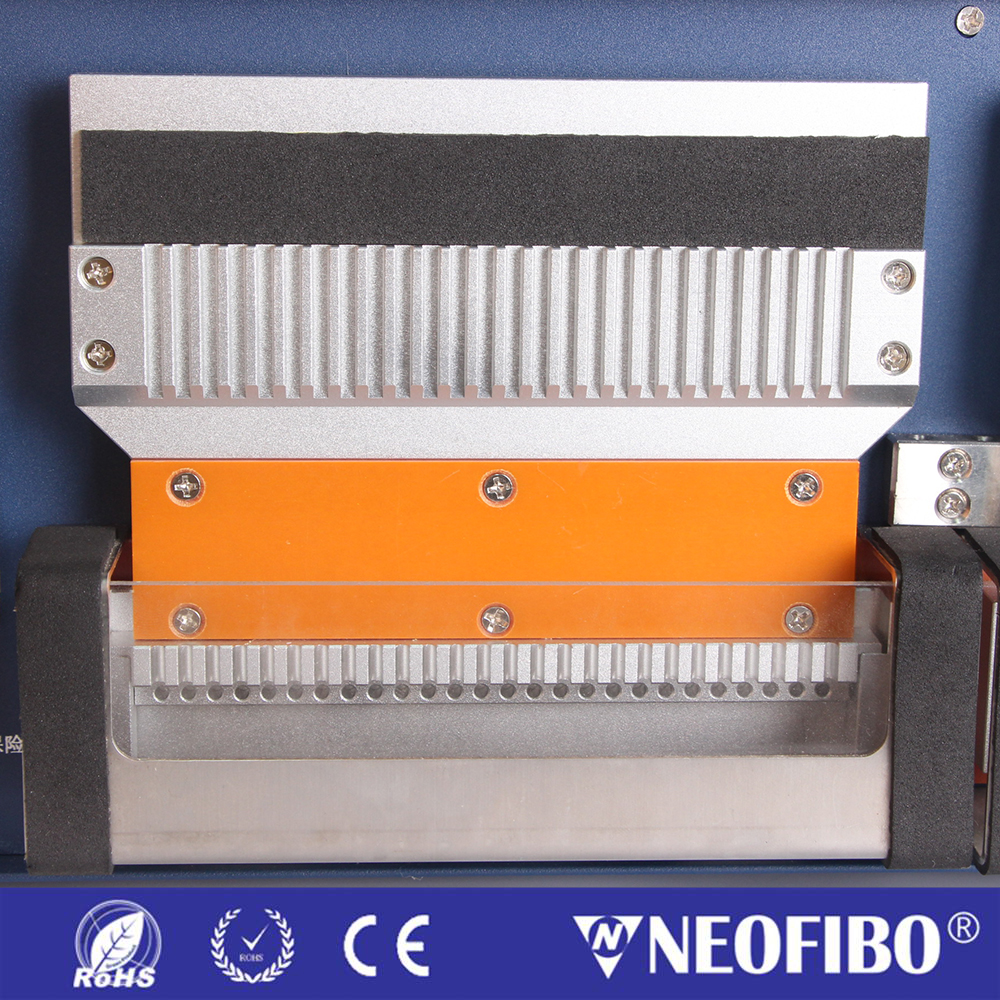

OFO-5200 Curing Oven is a type of universal curing oven for fiber optic connectors, it is available for general connectors (such as FC/SC/ST, MU/LC) after glue injecting. The heating board could contain 52 connector ferrules at most. There is indicator light, timer and temperature indicator. Simply operation and perfect solidified effect.

Key Features:

1.Input voltage: 220 VAC 50 Hz, or 110 VAC 50 Hz;

2.Horizontal Heating Board, convenient for putting ferrules and connectors;

3.High efficiency, 52 ferrules heating synchronously;

4.Indicator shows temperature and time, high precision for temperature control;

5.Automatically timing, and buzzer alarm reminding after time is up.

Technical parameters:

Dimension (mm)  420 x 320 x 140
Weight (kg)  8.5 kg
Heating Temperature  40 ~ 200 Celsius degree
Accuracy +/- 1 Celsius degree
Input Voltage  100~120VAC, 50Hz  /  200-240VAC, 50Hz
Power Consumption  800 W
Warm-up Time (approx.)   15 min
Connector Type    1.25 mm / 2.50 mm ferrule, FC/ST/SC/MU/LC
Capacity  52

Attention:

This device uses high-precision integrated circuit design, with PID function, need to prevent too hard and damage components during the processing.

If the device has any abnormal display, please notify the supplier for repair in time.



Shenzhen Neofibo Technology Limited was founded in 2008, locates Shenzhen China. Neofibo has dedicated to become the professional supplier for fiber optic polishing solutions and aims to make our customers’ fiber connectivity more reliable.

During last 14 years, we have been comprised of a group of experienced fiber optic professionals in areas of connector polishing and assembling, outside plant installation, transmission system, datacom, CATV and testing. Neofibo could provide products and service for you, whether you are fiber optic scientist working in multi-gigabit, DWDM, EDFA applications, maintenance engineer  for optical connecting system, an outside plant contractor providing splicing and testing, a datacom manager who works in multimode-to-single mode conversion or you are an optical fiber component manufacturer who needs lots of high quality pigtails, consumables and tools, you can count on us to offer you the verified solution.

Neofibo is focusing on the field of fiber optic polishing solutions.

We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.

Neofibo could provide the whole sets of production equipments for fiber optic patch cord, such as fiber optic polishing, end face inspection microscope, functional inspection and detection, raw materials as fiber optic cables and fiber connectors, processing tools and cleaning consumables.

Neofibo can provide not only products, but also technical services and R & D support.

Neofibo should be your partner forever.





















What does NEOFIBO offer?

We offer full range of quality and comprehensive fiber optic products, including Patchcord Production Machine, polishing jigs, as Seikoh Giken, Senko, Domaille or customized ones; Polishing Consumables, Tools, Cleanings, Tool Kits, Testing Equipment, Splice Items. We commit to offer you Attractive Price, Excellent Quality and Fast Delivery!

What will be the delivery cost?

All price listed are FOB Shenzhen. Your nominated courier is acceptable. Otherwise, we will use FEDEX, DHL, UPS or any other forwarder per confirmation and charge accordingly.

How the goods will be delivered?

For normal stock items, they will be dispatched within 1-2 business days after payment confirmation. However, for items out of stock, estimated leadtime will be 3-10 working days.

How can I order the goods?

Neofibo is pleased to offer our valuable customers three ordering channels.  e.g.:  Online Ordering, Fax Order Form and Issuing Formal Purchasing Order by mail.

How is the warranty for NEOFIBO product?

All products are warranted by NEOFIBO (consumables, normal tear and wear excluded) for one year after date of purchase. Any part defected in material or workmanship and returned to NEOFIBO, as NEOFIBO designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or replaced, at NEOFIBO’s option.
